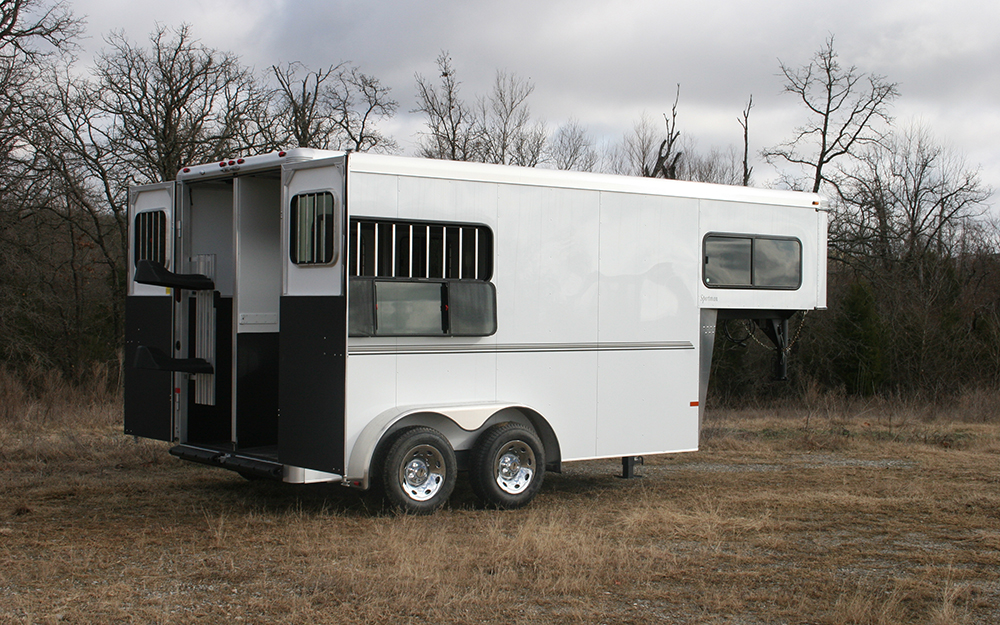

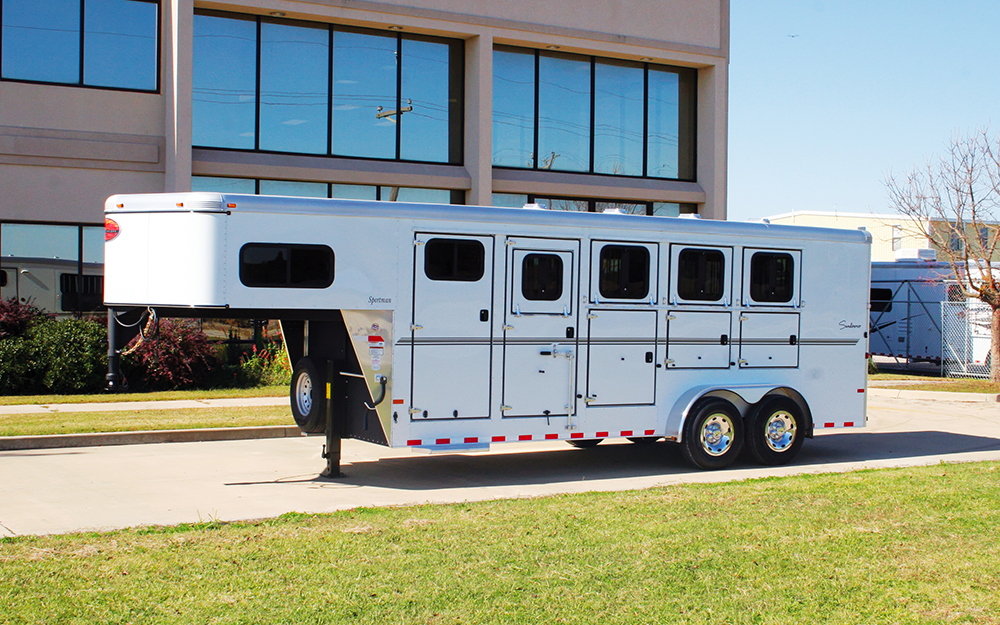

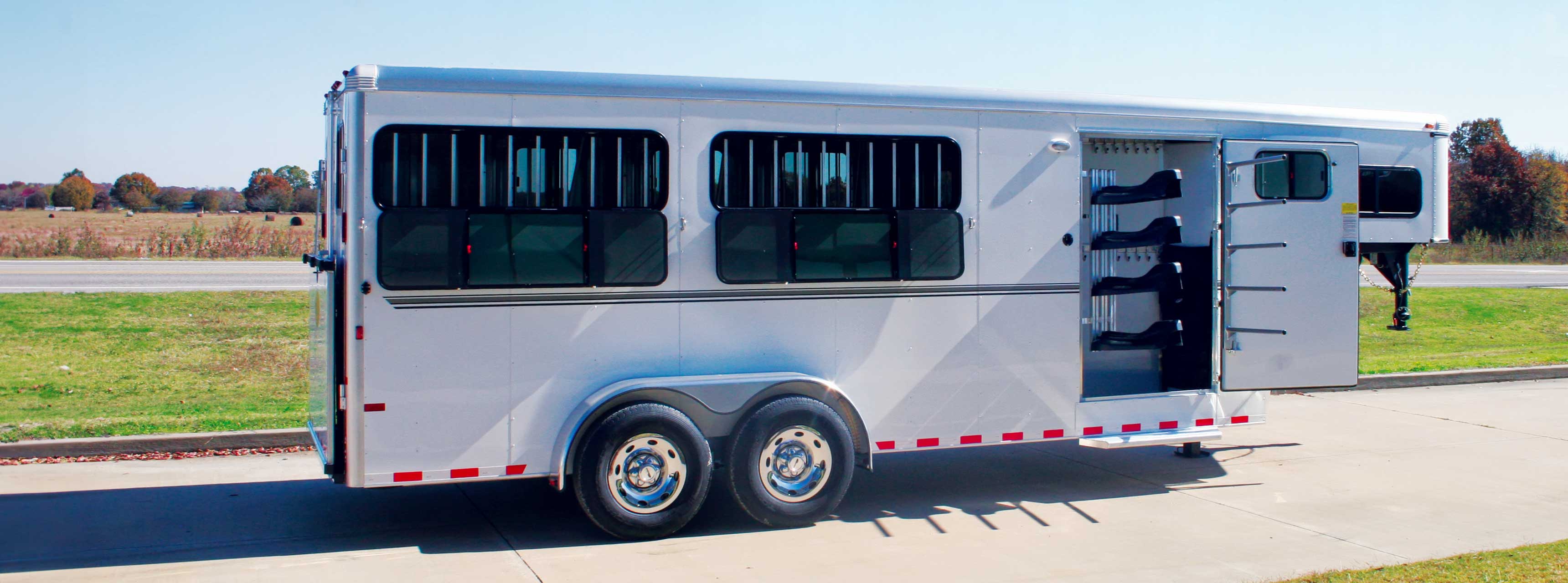

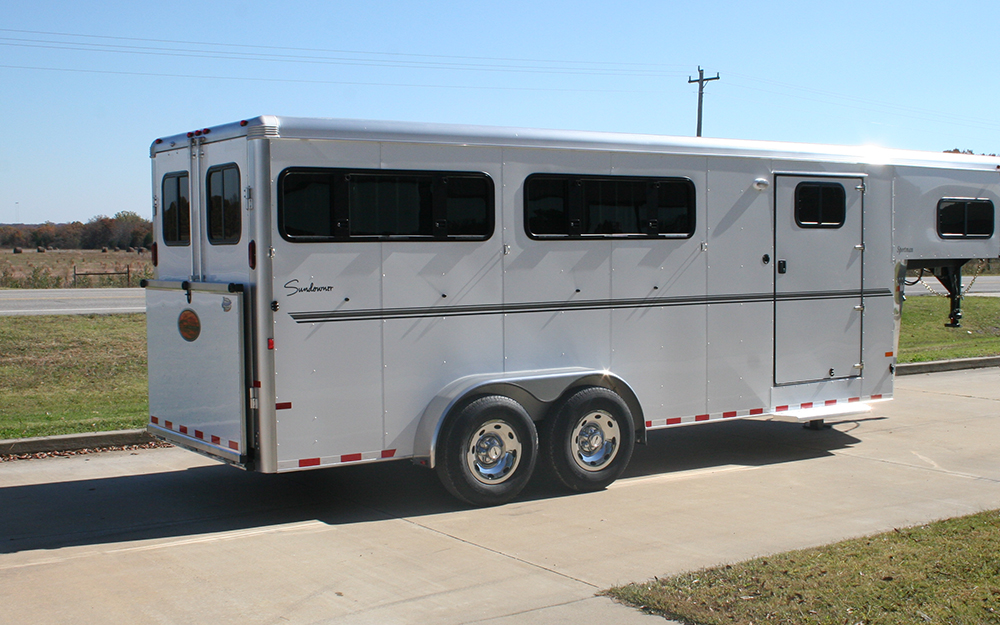

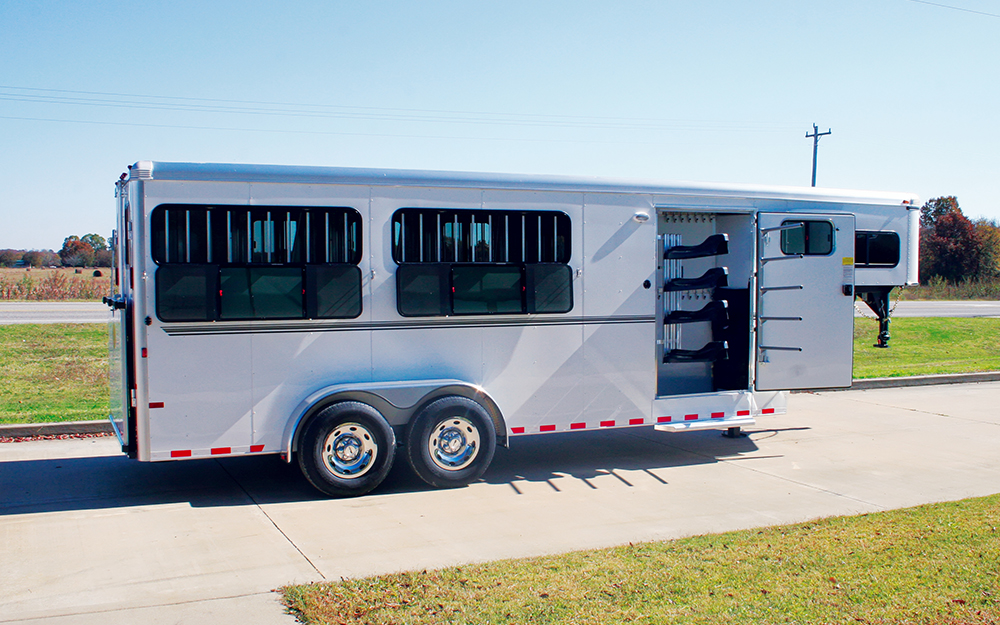

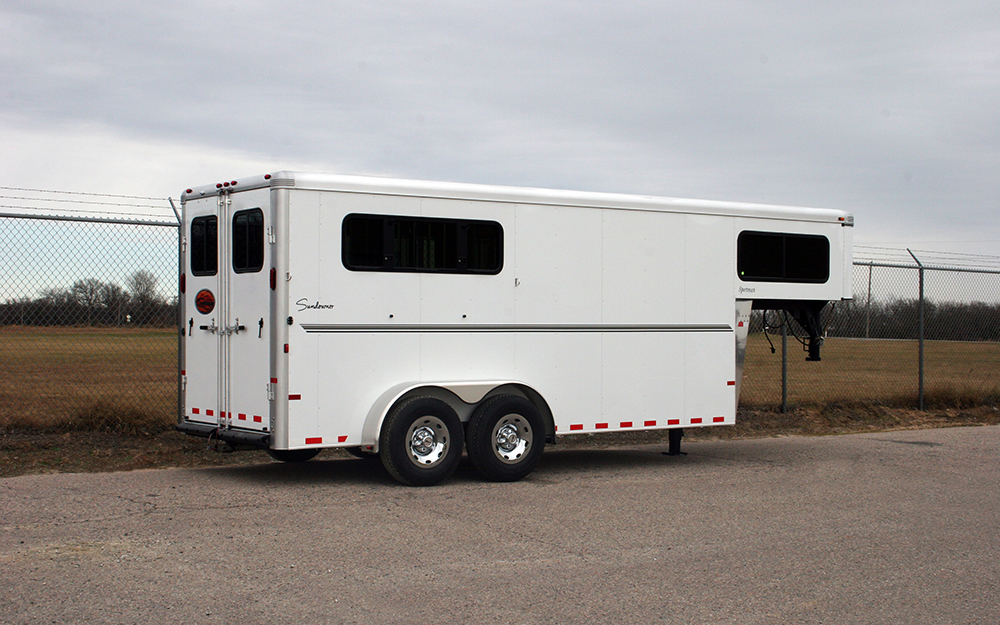

Sportman Gooseneck

The Sportman is an all aluminum trailer that is built with today's budget conscious buyer in mind. The slant load gooseneck trailer is available in 2 to 8 horse models. It has drop down feed doors on the head side and is fully enclosed with a huge 18" x 64" window that drops down on the rump side for increased air flow. This trailer has a rear tack with a swing out saddle rack and a tack room.



  • Trailer

Standard Features

Coupler Gooseneck, 2 5/16 adjustable
Load Type Slant
Number of Horses 2 - 8 horse
Trailer Width 6'9"
Inside Height 7'
Stall Width 39"
Construction All aluminum
Floor All aluminum
Exterior Pre-painted aluminum exterior (white)
Axles/Brakes 2 rubber torsion axles
4 Wheel electric brakes with safety breakaway
Bumper Rear rubber bumper
Windows Two sliding windows in nose
Safety Lights LED clearance & tail lights
Jack Drop leg
Graphics Graphics package



Horse Area

Dividers Padded airflow head and shoulder dividers
Floor Mats In horse area
Feed Doors Drop down head door with sliding window per horse
Drop Down Window Large drop down window with bars on rump wall
(2 on 4 horse)
Rear Door Double rear door with sliding windows
Kick Panel SunCoated kick panels - side walls, slant wall and rear doors
Vent Pop-up horse vent per stall
Interior Light Dome light in horse area
Tie Ring 1 Outside and 2 inside tie rings per stall
Latches Rotary latches on all dividers



Rear Tack

Collapsible Rear Tack
Swing out saddle rack - saddle per horse
4 Tack hooks
Dome light



Front Tack Storage

Locking door with sliding window
Carpeted breast plate and gooseneck deck
Rubber floor mats
Dome light
6 Tack hooks
Blanket bar
Brush tray mounted on tack storage door
Saddle rack mounting location



Popular Options

Spare
Additional dome light(s)
Load lights
Rear ramp
Center access door from tack storage room
Face guards
Extra height



SimpleViewer requires JavaScript and the Flash Player.Get Flash.

Floorplans

(Click for Larger View)

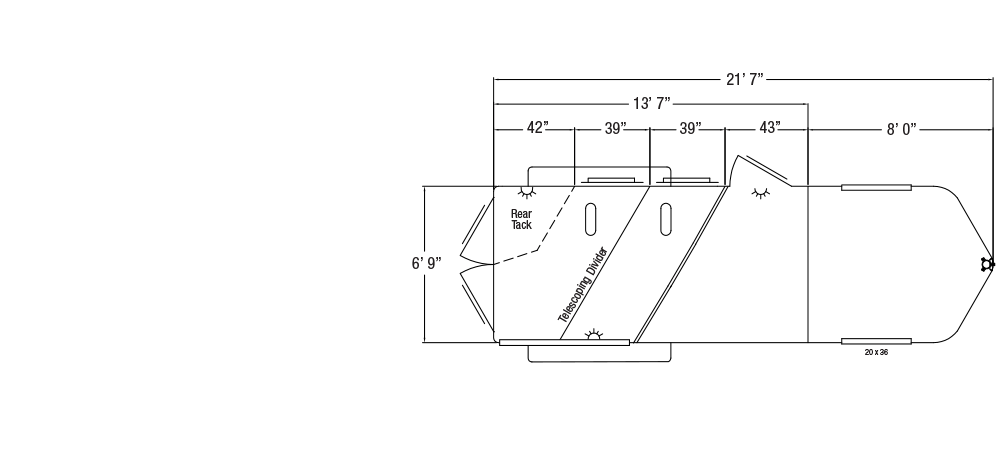

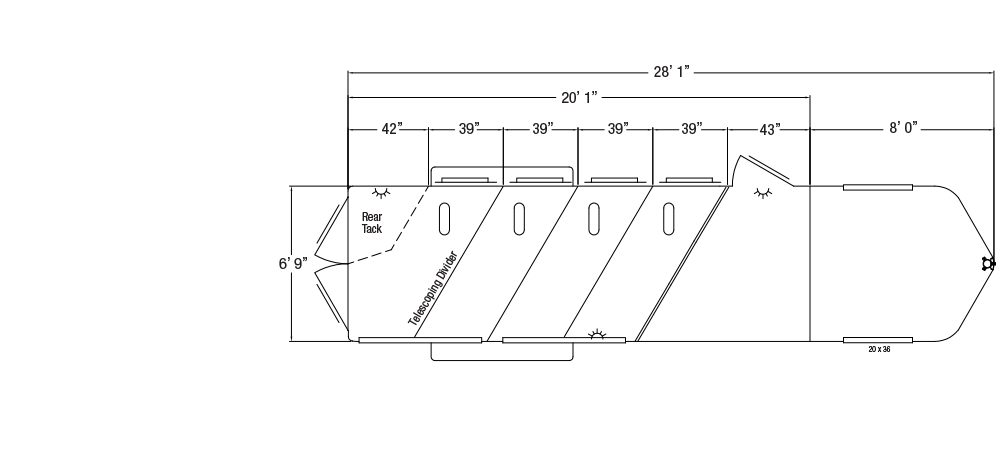

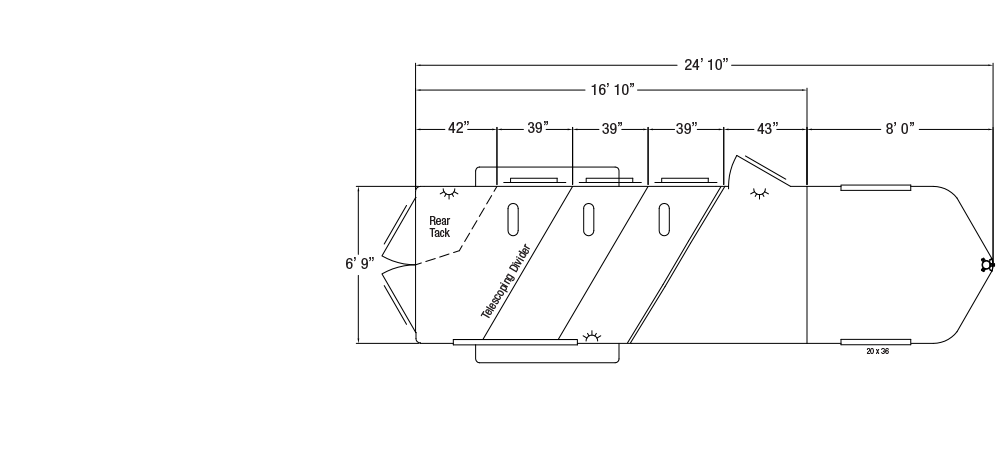

Sundowner Sportman Gooseneck Trailer Floorplan
Sundowner Sportman Gooseneck Trailer Floorplan
Sundowner Sportman Gooseneck Trailer Floorplan

*All dimensions are approximate. Photos may show options. Due to constant product improvements, specifications, component parts, standard and optional equipment are subject to change without notice or obligation. See your dealer for warranty details.
