XL DeckOver

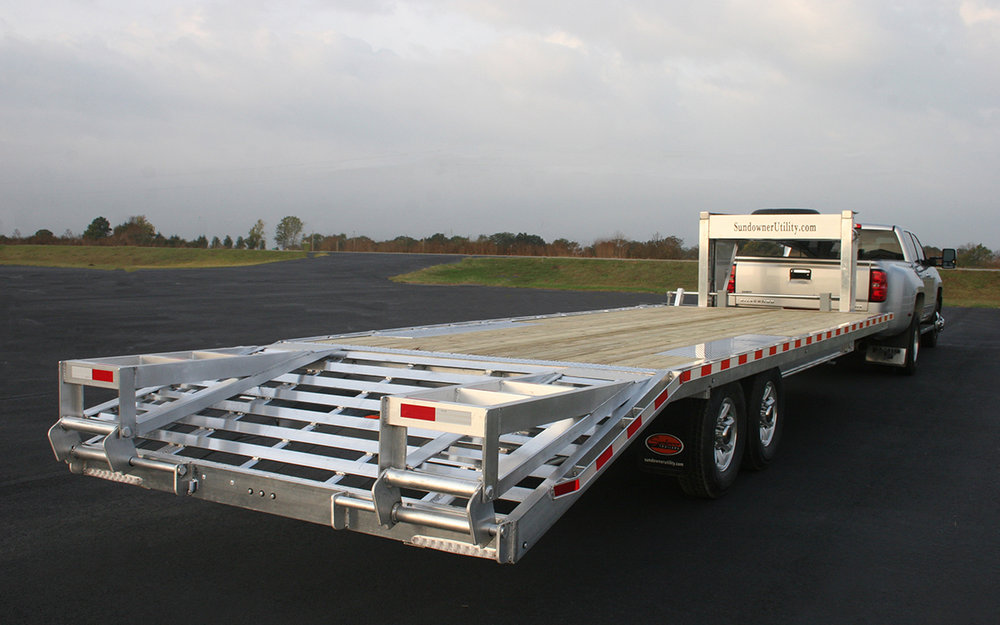

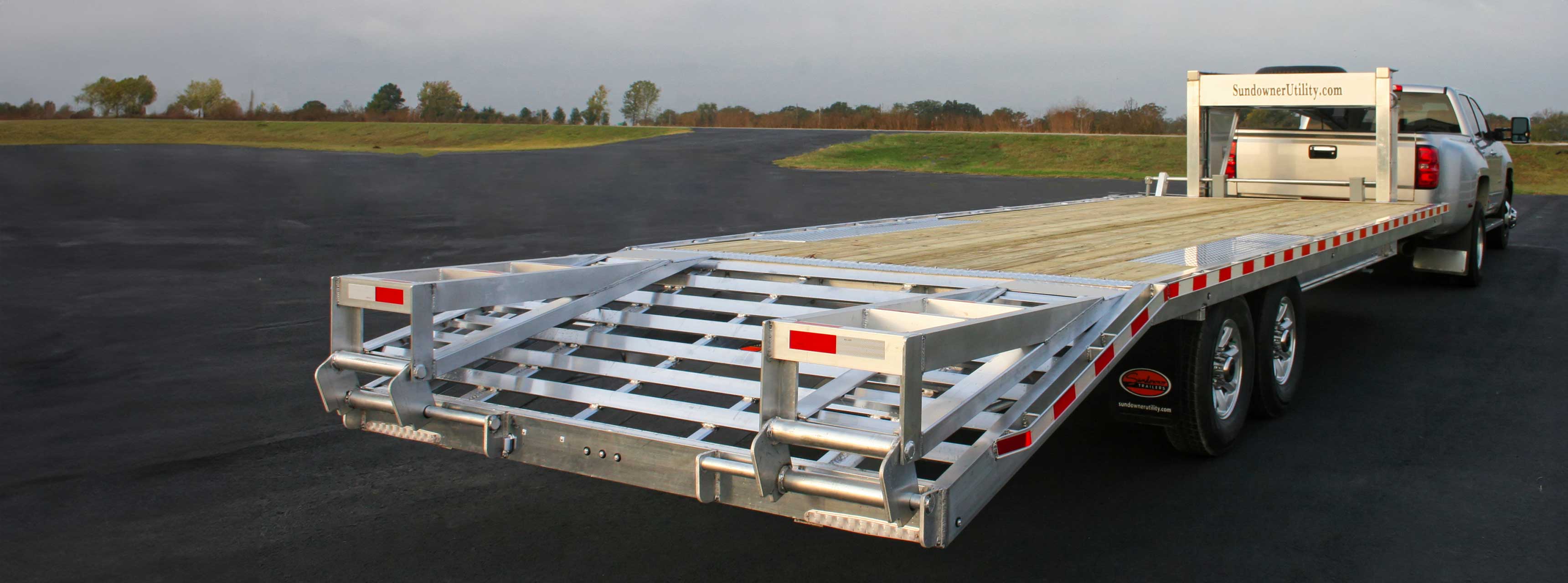

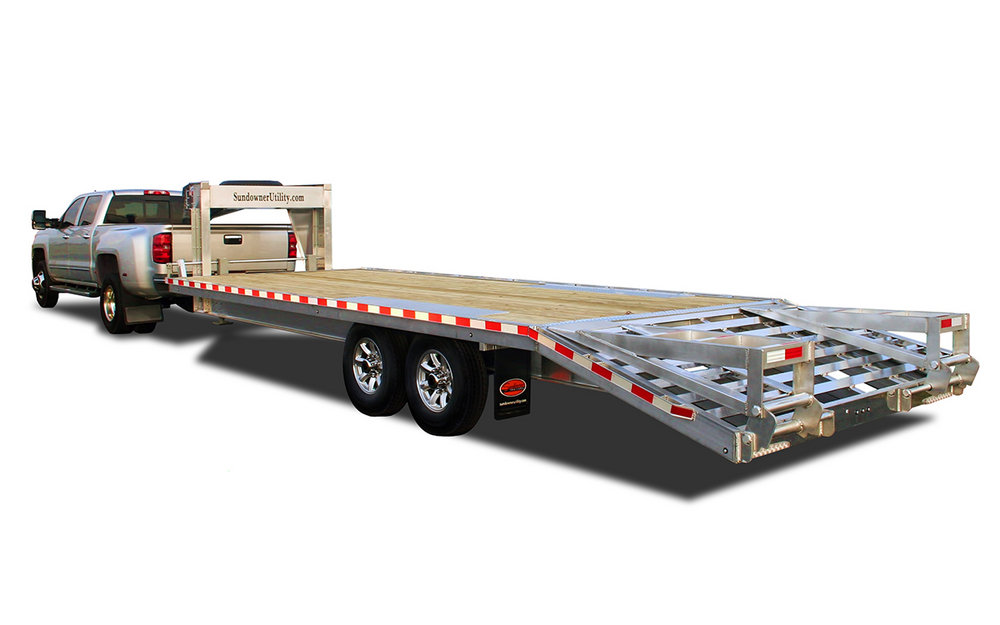

Sundowner’s XL DeckOver Series has the tough features you need to handle an array of hauling needs. Whether it’s equipment for work, hay or feed for animals or your toys like ATV’s, Side by Sides and rock crawlers, this trailer can handle it. The XL DeckOver is loaded with features and popular options plus it can be customized to fit your specific needs. This gooseneck has a 2x6 treated wood floor on 12” I beam crossmembers. The dovetail has flip over heavy duty ramps for easy loading and the rub rail with stake pockets makes securing your load easy. The XL DeckOver Series is backed by the Sundowner 3 year hitch to bumper-8 year structural warranty.



  • Trailer

Standard Features

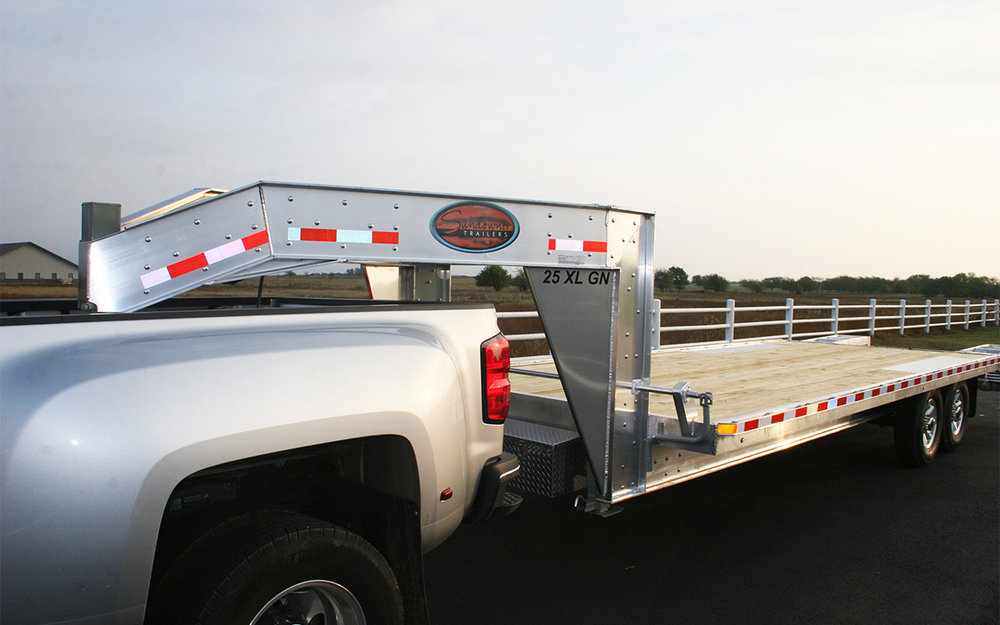

Coupler Gooseneck, 2 5/16"
Trailer Width 102"
Trailer Length 33'
Trailer Floor Length 25'
Dovetail 5' Dovetail
Construction 12" Aluminum I-beam frame and neck
3" Channel crossmembers on 12" centers

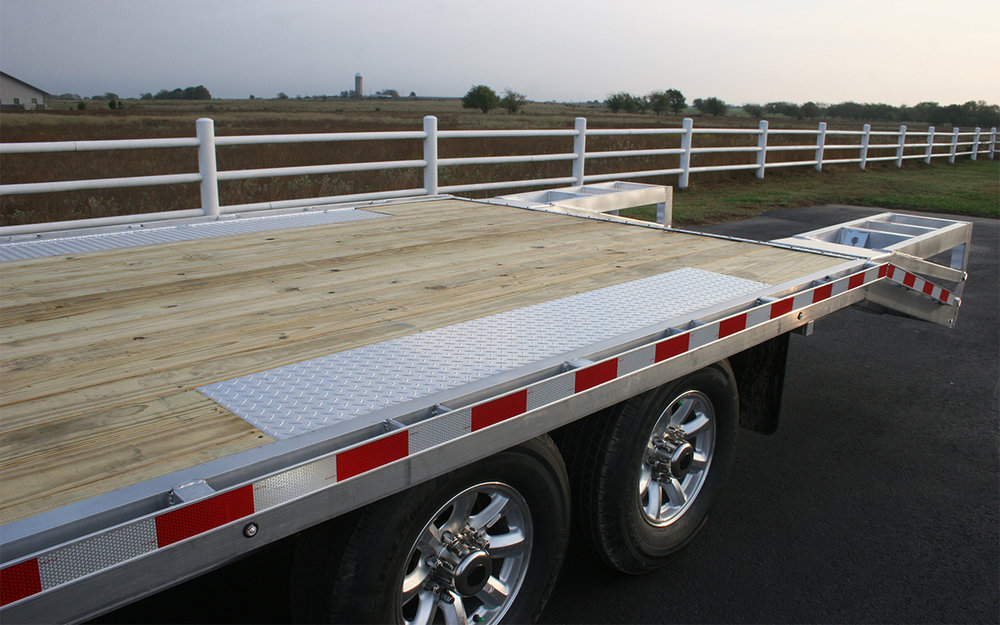

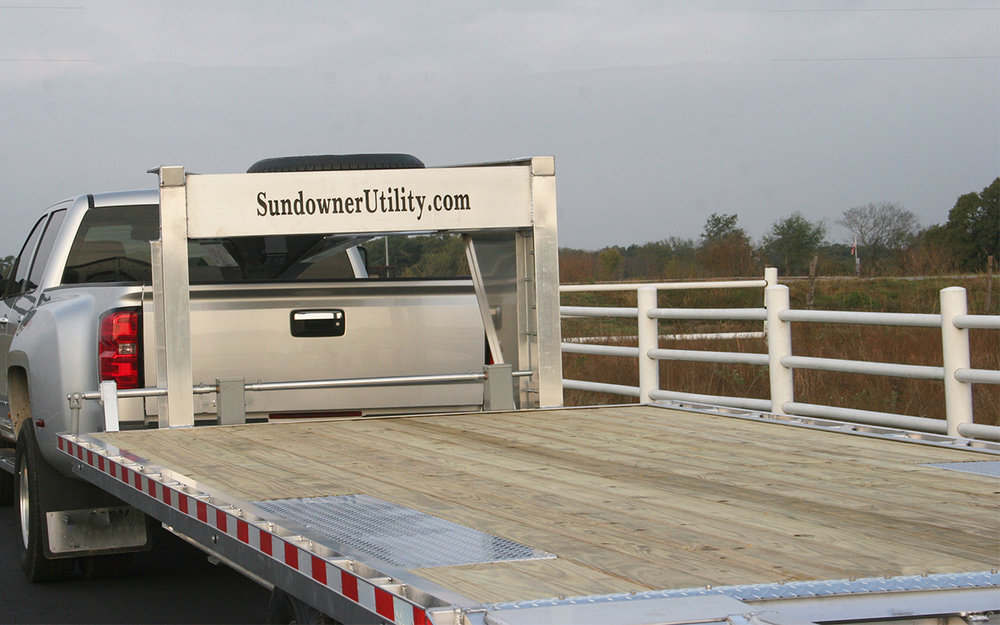

Floor 2x6 Treated wood floor
Bottom rail Rub rail with stake pockets

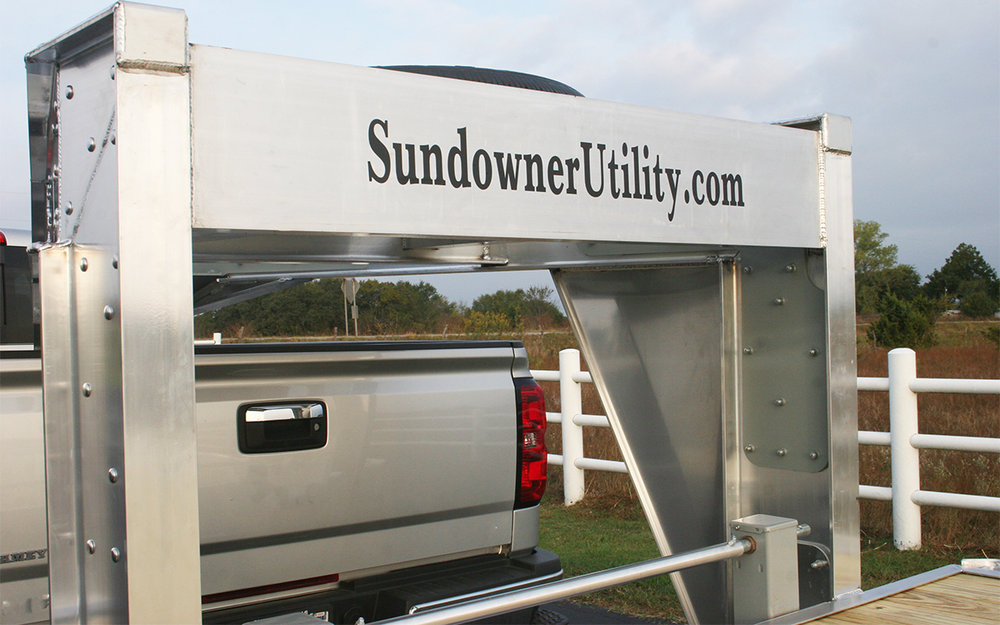

Storage Lockable tool box between gooseneck uprights
Ease of access Step with grab handle

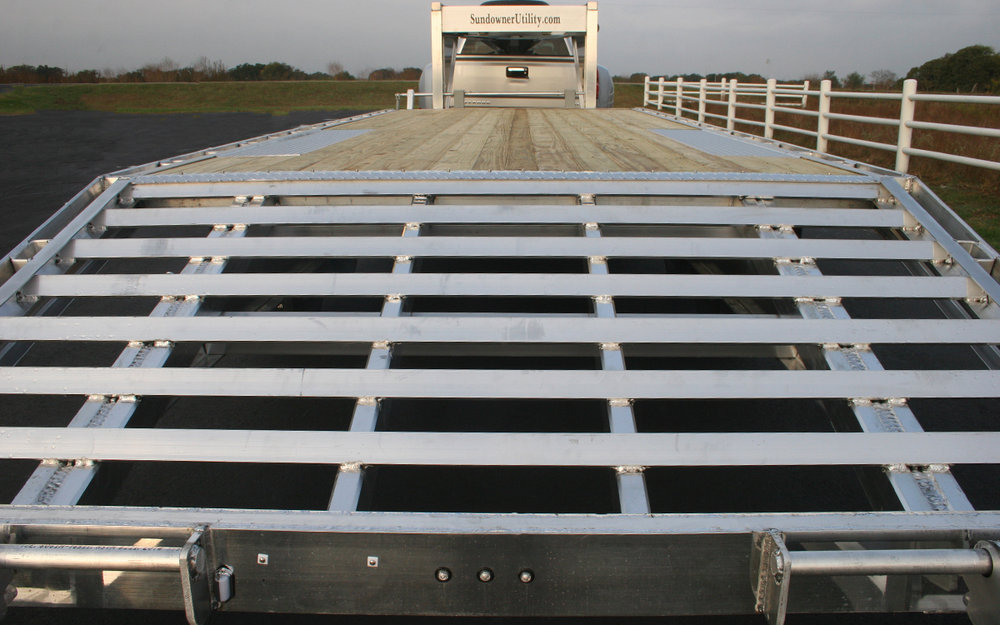

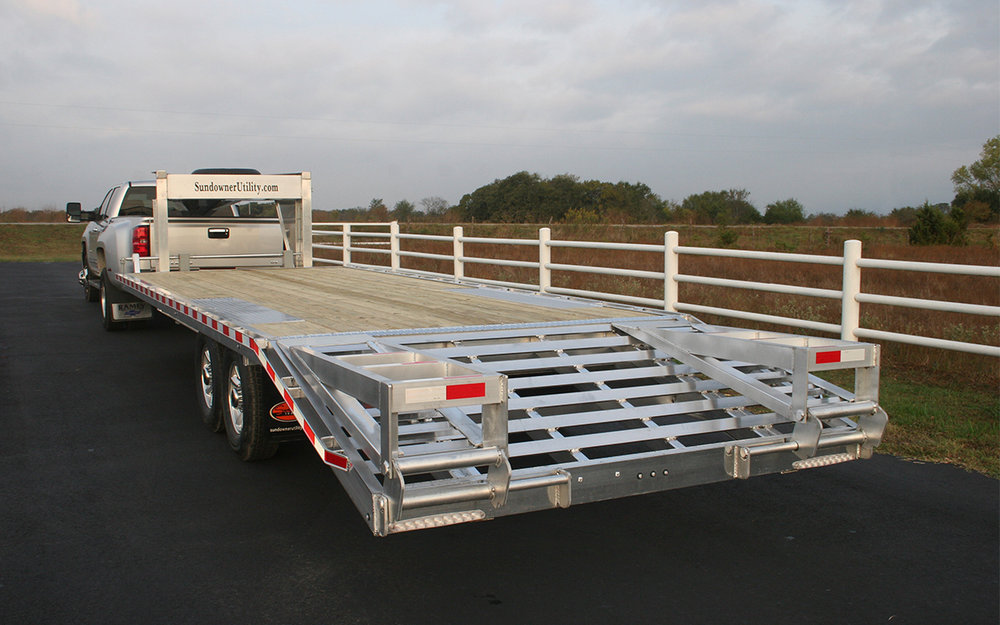

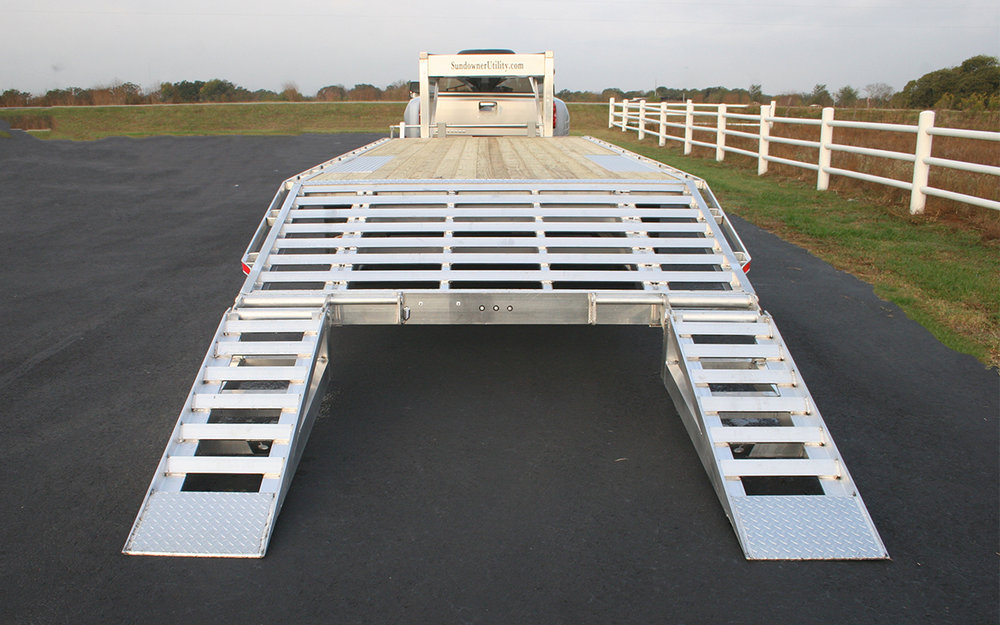

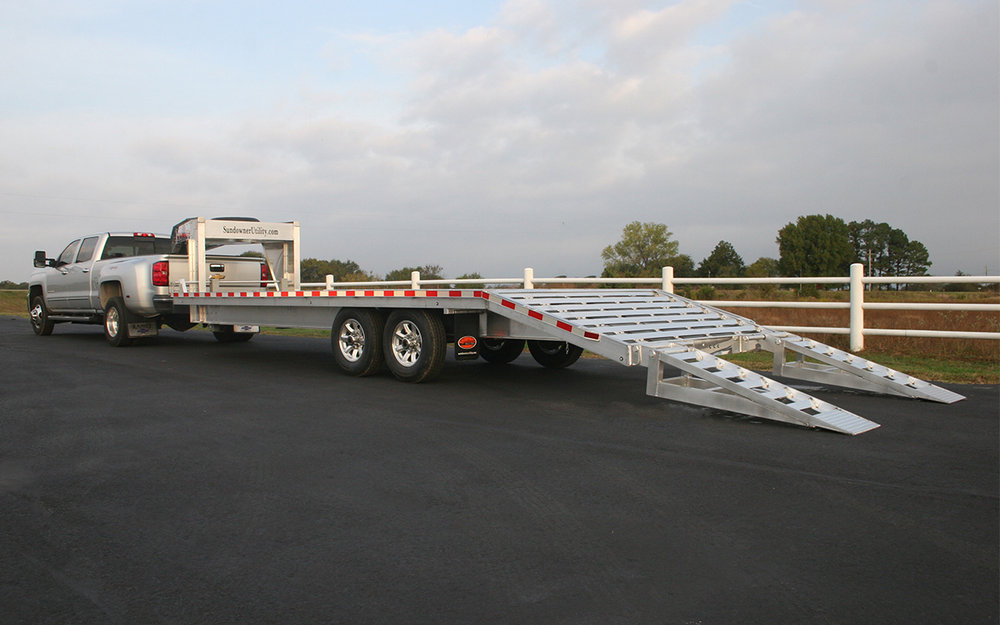

Ramps Dovetail with heavy duty flip up ramps
Lights LED marker and tail lights
Axles 2 - 7000# Rubber torsion axles
Tires 235x16 Radial tires with nitrogen
Wheels Aluminum wheels
Spare Spare tire
Jack Dual drop leg jack



Popular Options

Extra length
Aluminum floor
Hydraulic jack
XL ramp
Additional toolbox

Technical Drawings

(Click for Larger View)

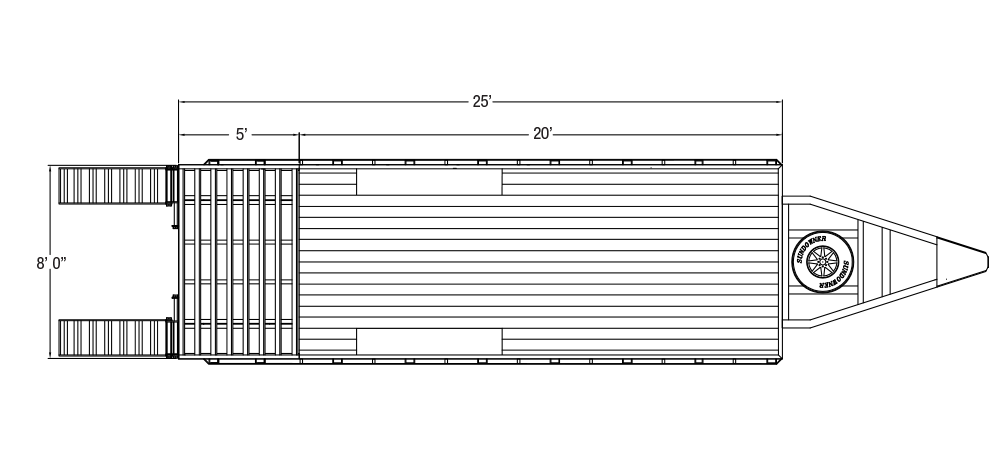

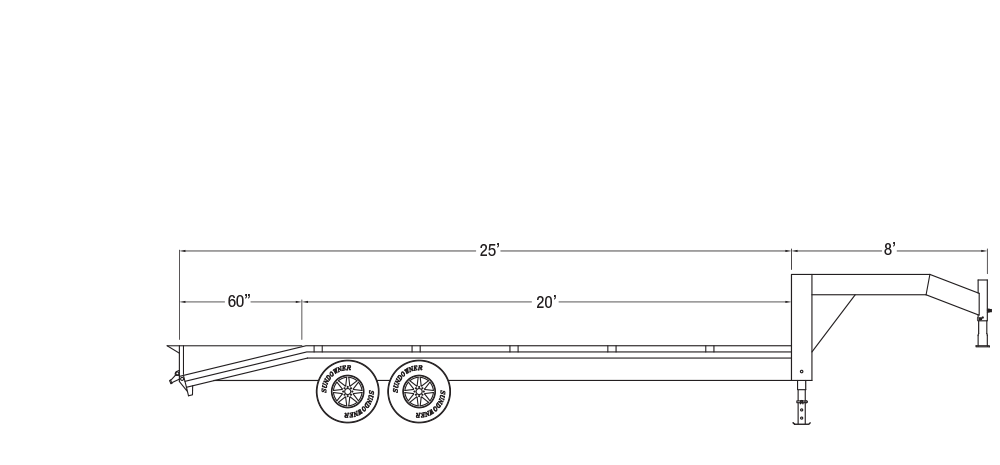

Sundowner XL Deckover Curbside Drawing

*All dimensions are approximate. Photos may show options. Due to constant product improvements, specifications, component parts, standard and optional equipment are subject to change without notice or obligation. See your dealer for warranty details.
