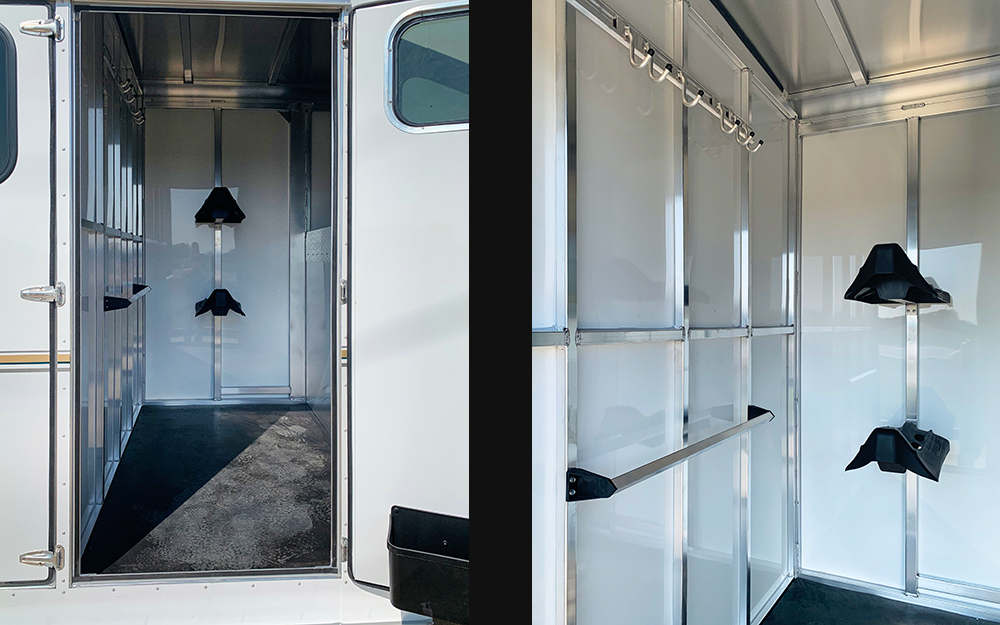

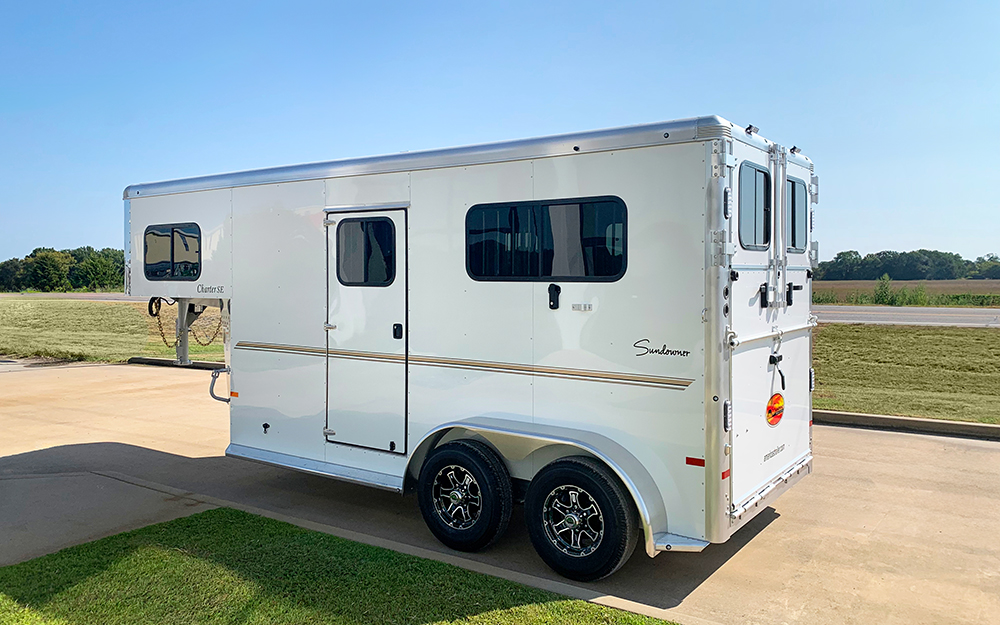

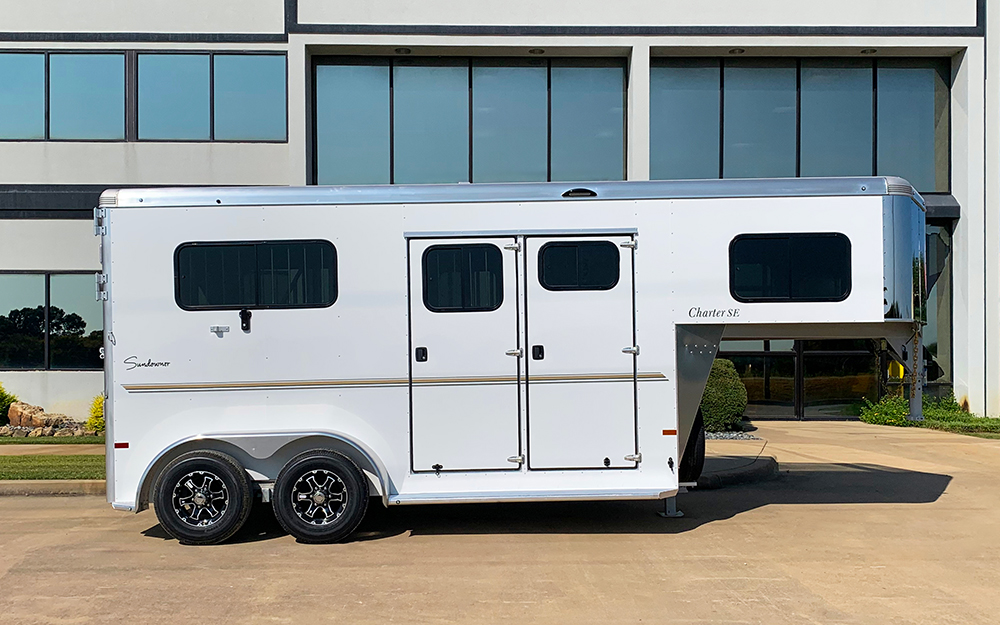

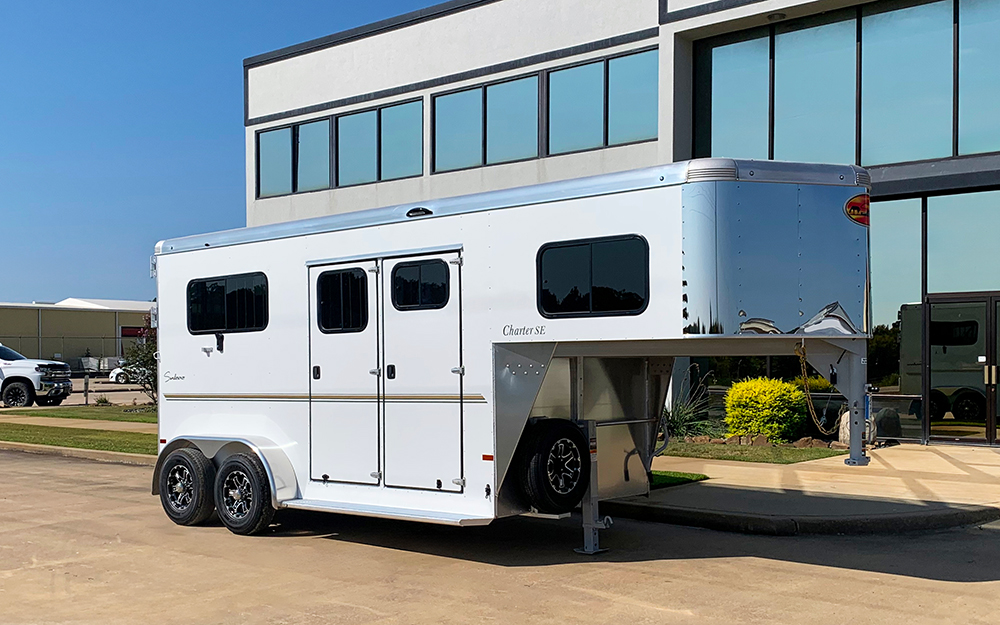

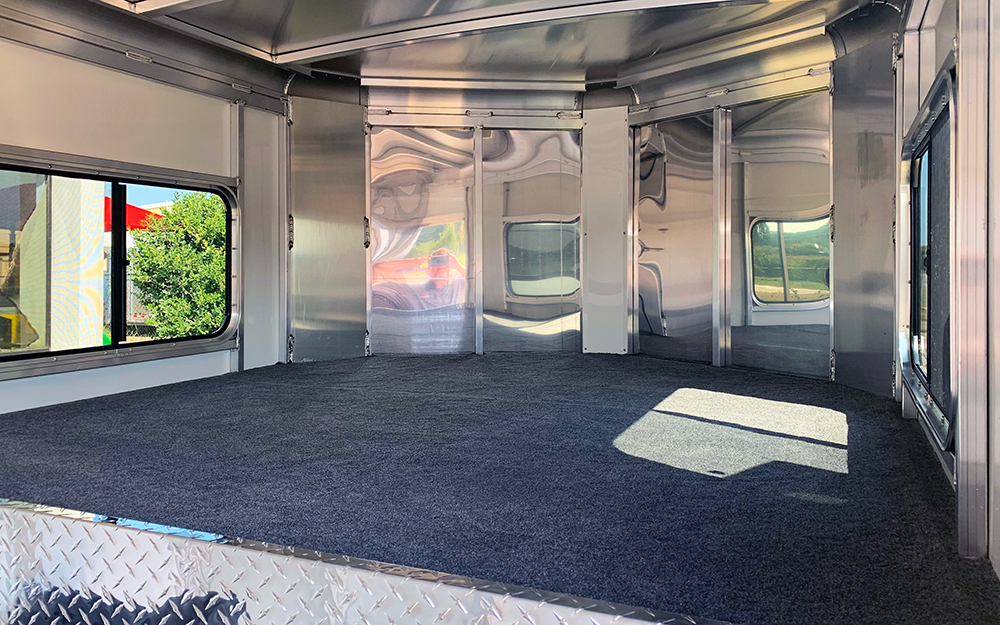

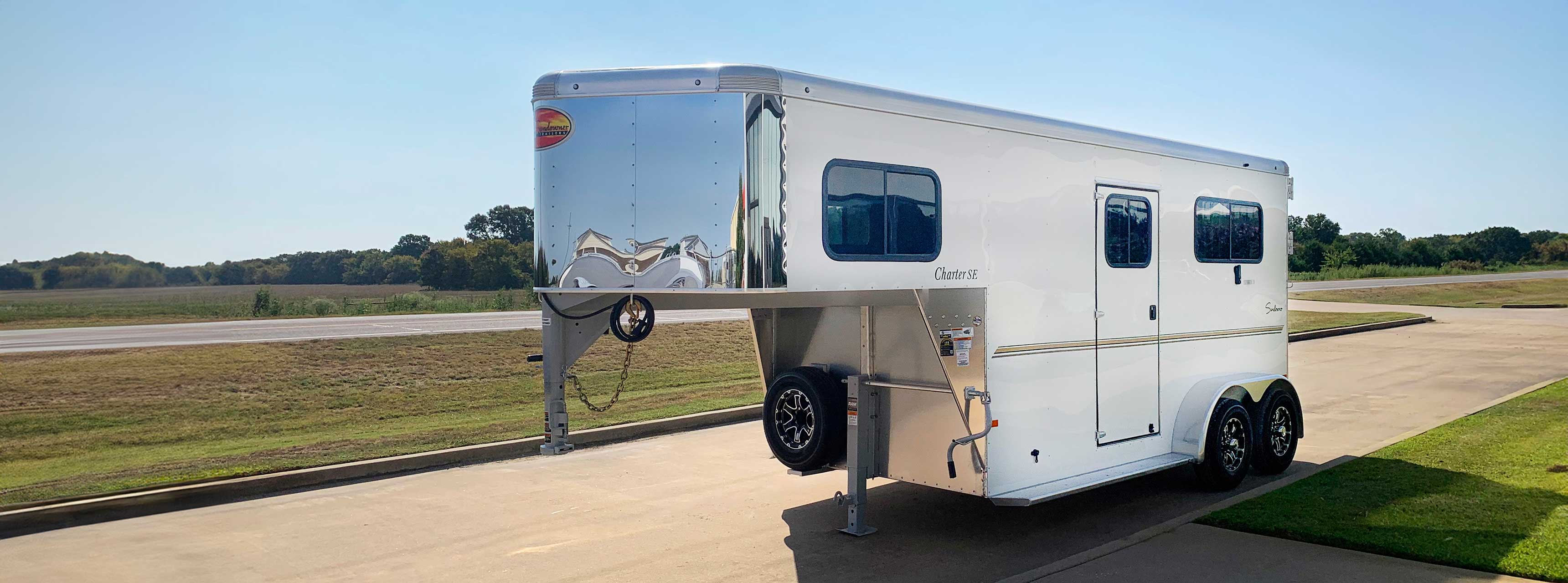

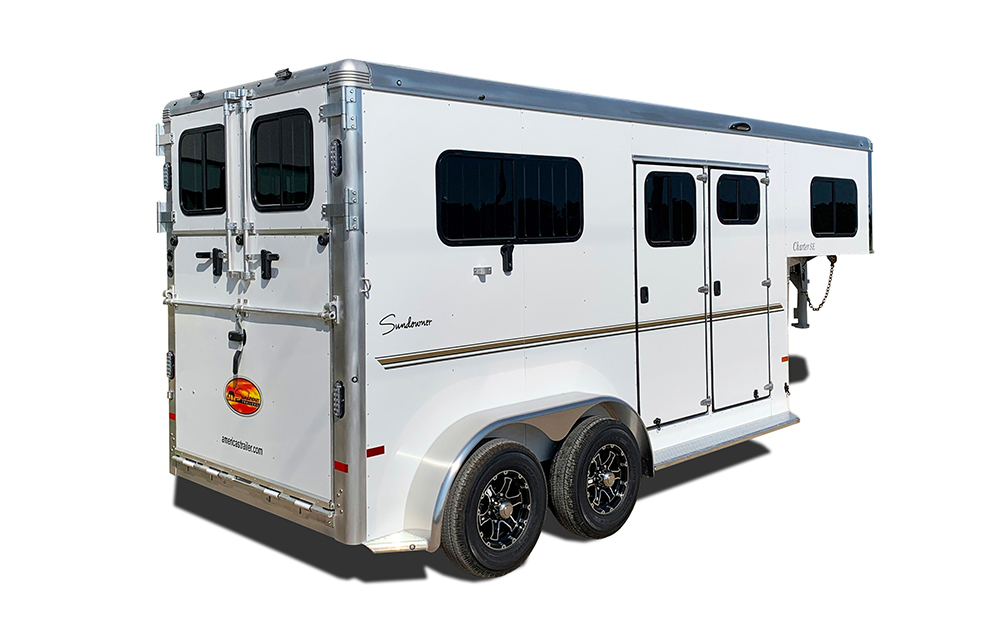

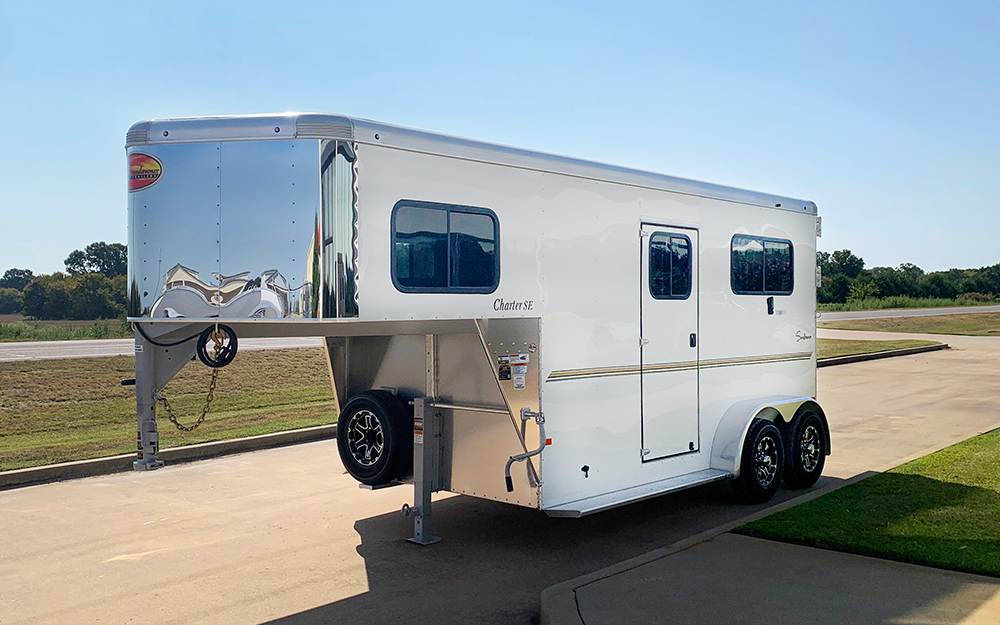

The Charter Gooseneck TR SE is a 2 horse straight load trailer with a large front tack room. It comes standard with two large sliding windows in the horse area, a divider between the stalls, a side access door per stall and are 7’ 6” tall. The Charter TR SE has two saddle racks in the tack room along with two large windows in the nose, a window in the tack door, and it also has windows in the rear tail curtains.
Download the Product Sheet
| Coupler | Adjustable Gooseneck, 2 5/16" |
| Load Type | Straight |
| Number of Horses | 2 horse |
| Trailer Width | 6' 9" |
| Inside Height | 7' 6" |
| Stall Width | 38" |
| Construction | All aluminum |
| Floor | All aluminum with aluminum I-beam crossmembers |
| Wall | Tube frame wall with integrated roof rail |
| Exterior | Prepainted aluminum exterior |
| Axles/Brakes | Rubber torsion axles 4 Wheel electric brakes with safety breakaway |
| Safety Lights | LED clearance & tail lights |
| Landing Gear | Drop leg jack |
| Graphics | Graphics package |
| Spare | Spare tire and wheel |
| Running Boards | Full length running boards |

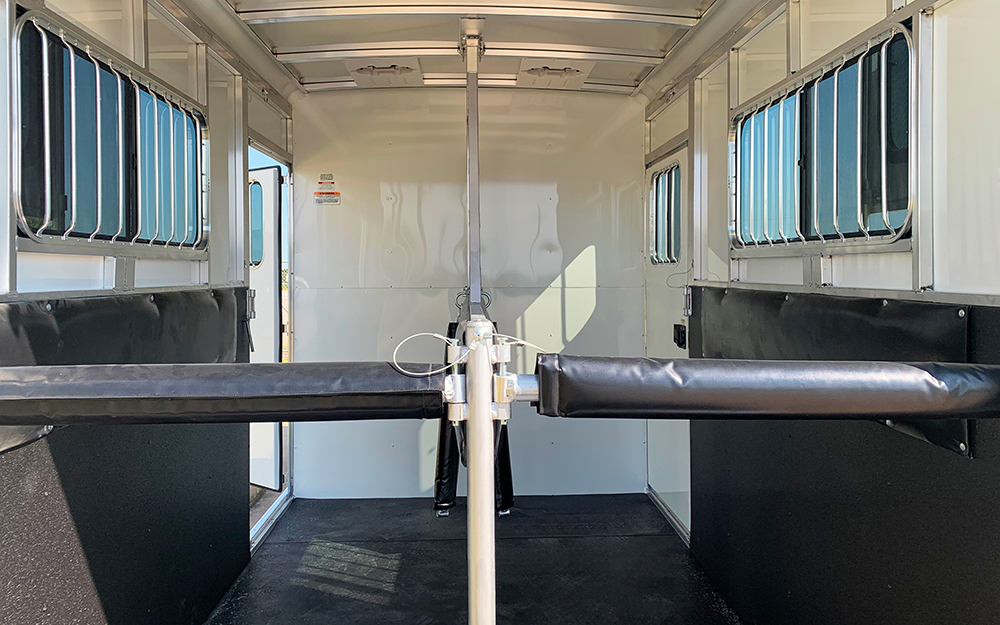

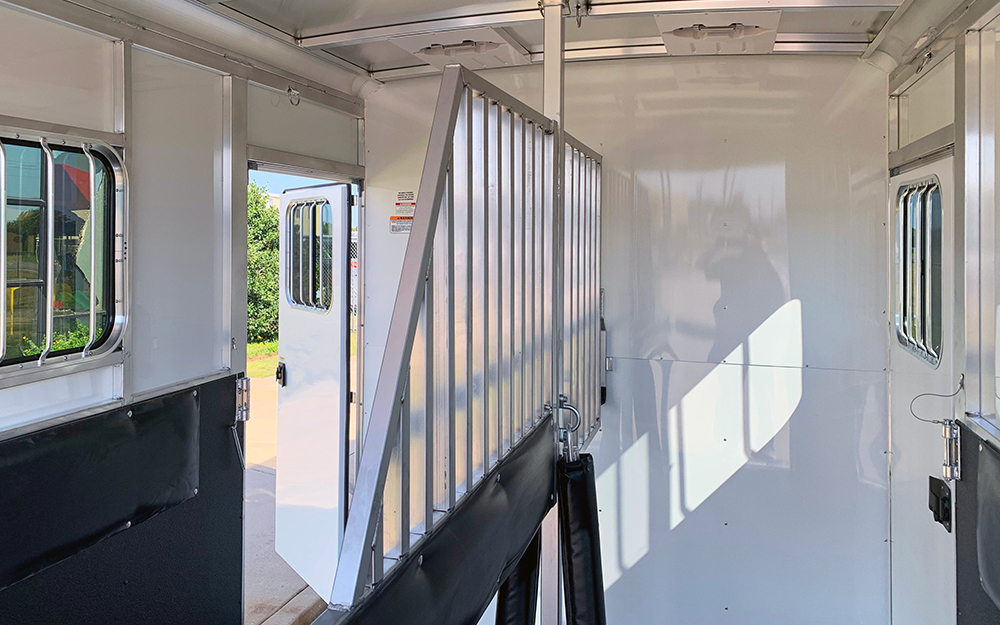

| Dividers | Padded airflow head and shoulder dividers with butt bar and breast bar per stall |
| Floor Mats | In horse area |
| Windows | Large sliding window per stall 2 Sliding windows in tail curtains |
| Side Doors | Side access door with sliding window per stall |

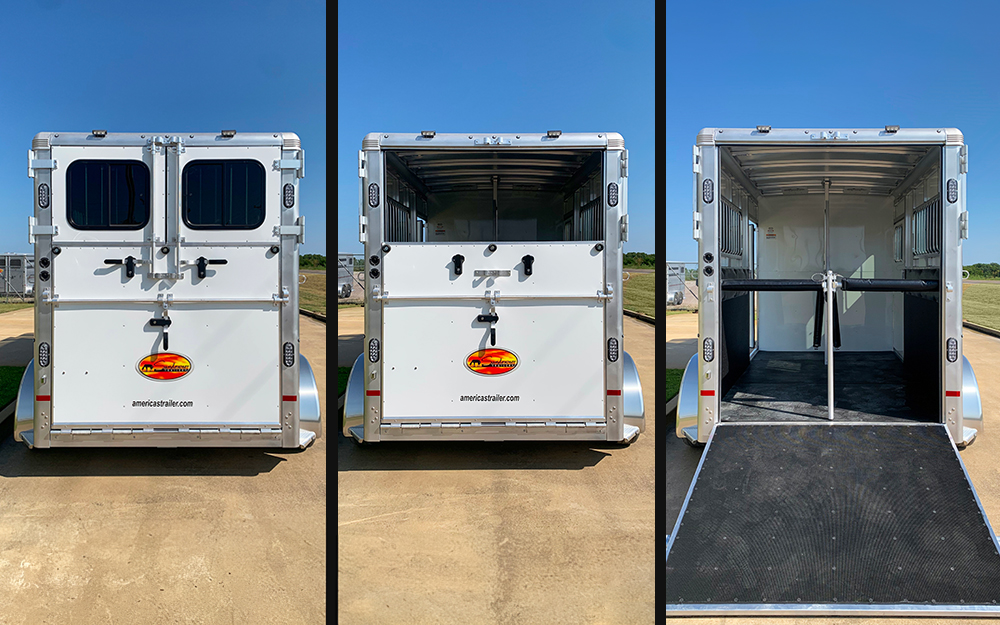

| Ramp | Spring loaded rear ramp (rubber lined) with wrap around tail curtains above rear ramp |
| Walls | SunCoated™ side walls (double wall construction) |
| Vent | Pop-up horse vent per horse stall |
| Interior Light | Dome light in horse area |
| Tie Ring | 1 Outside and 2 inside tie rings per stall |

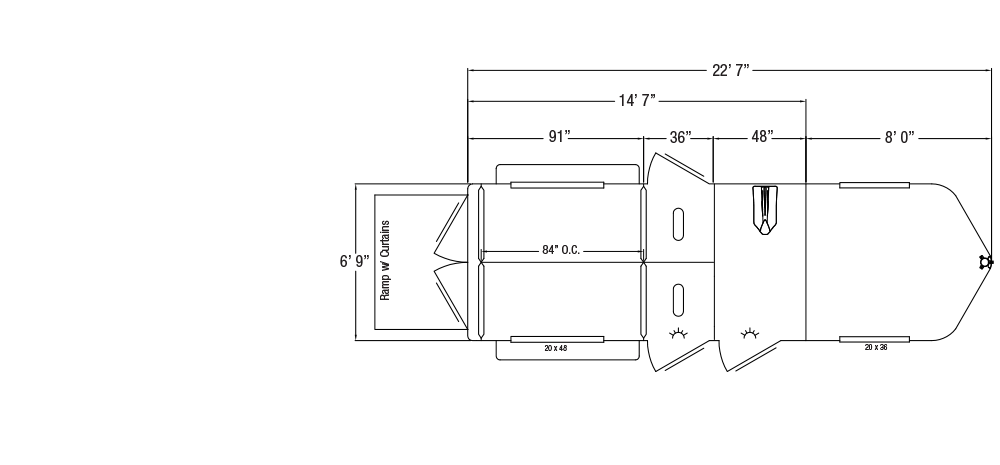

(Click for Larger View)
*All dimensions are approximate. Photos may show options. Due to constant product improvements, specifications, component parts, standard and optional equipment are subject to change without notice or obligation. See your dealer for warranty details.
