Stockman Express Bumper Pull

Stockman Express Bumper Pull

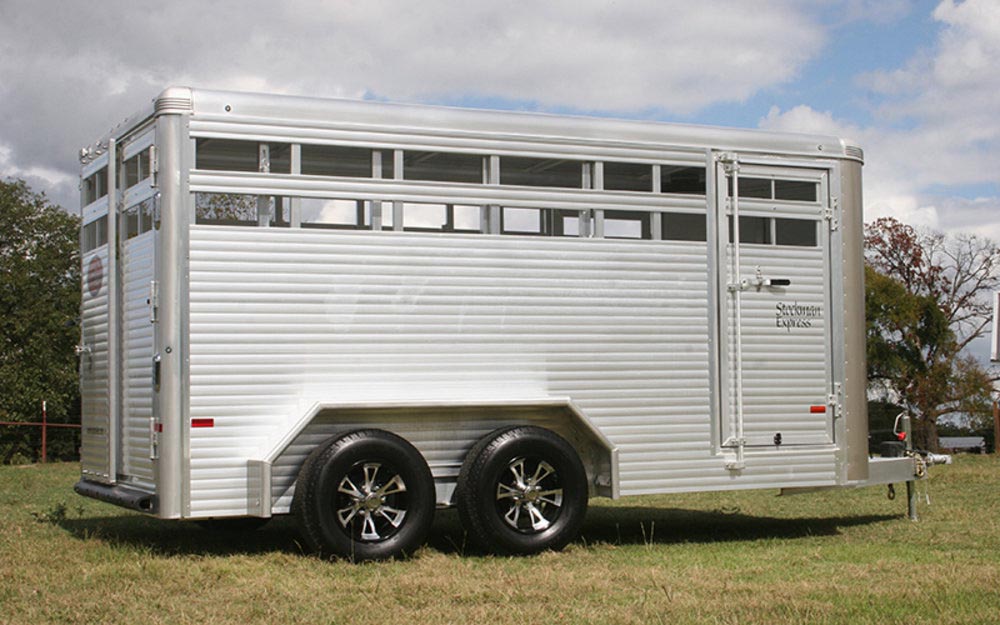

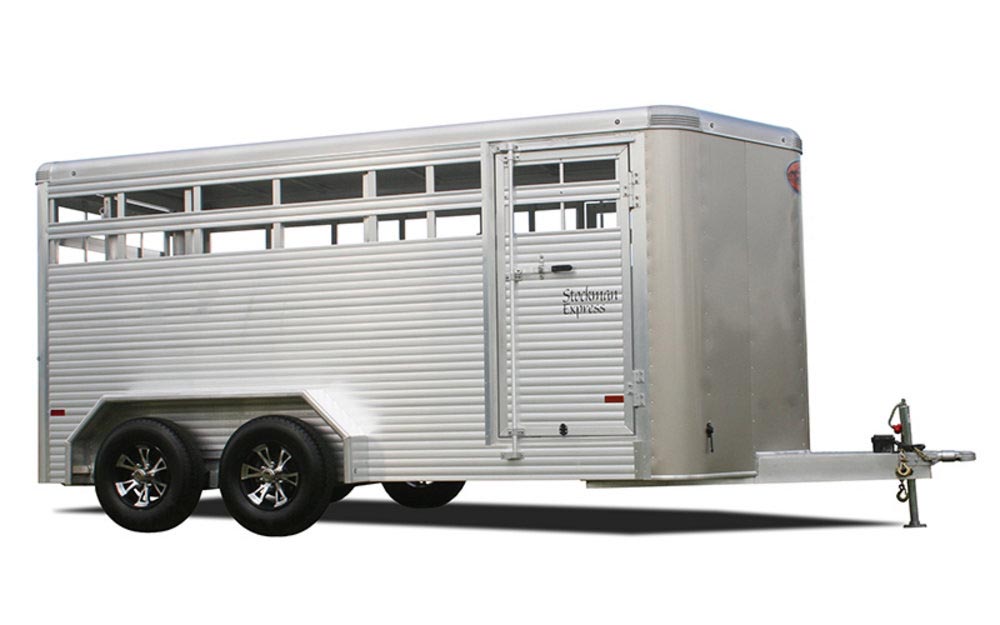

The Stockman Express is the newest addition to our already popular stock trailer line-up. In 12’, 14’ and 16’ lengths the new Express Series is built with the same quality and standards people have come to expect from a Sundowner. Loaded with features such as heavy duty fenders, 4” I-beam cross members on 12” centers, slam latch gates, 2 side access doors and a 4” raised nose. The Express offers the features you want at a price everyone can afford.

Product Sheet LinkDownload the Product Sheet

Video    See a walk through of our Stockman Express Trailers

Standard Features
Hitch Bumper Pull, 2 5/16"
Trailer Width 6' 9"
Inside Height 6'6"
Length 12', 14' or 16'
Construction All aluminum
Floor All aluminum with aluminum I-beam crossmembers
Wall Tube frame wall with integrated roof rail
Exterior Double wall extruded aluminum sides
Wall Posts 2" Upright wall posts welded on both sides
Floor Cross Members 4" Aluminum I-beam floor cross members on 12" centers
Exterior Skin Prepainted aluminum skin
Air Spacing 2 or 3 Air gaps with Plexiglas tracks
Fenders Heavy duty fenders
Interior Lights 1 Interior light inside stock area
Center Gate Swinging center gate standard on 16'

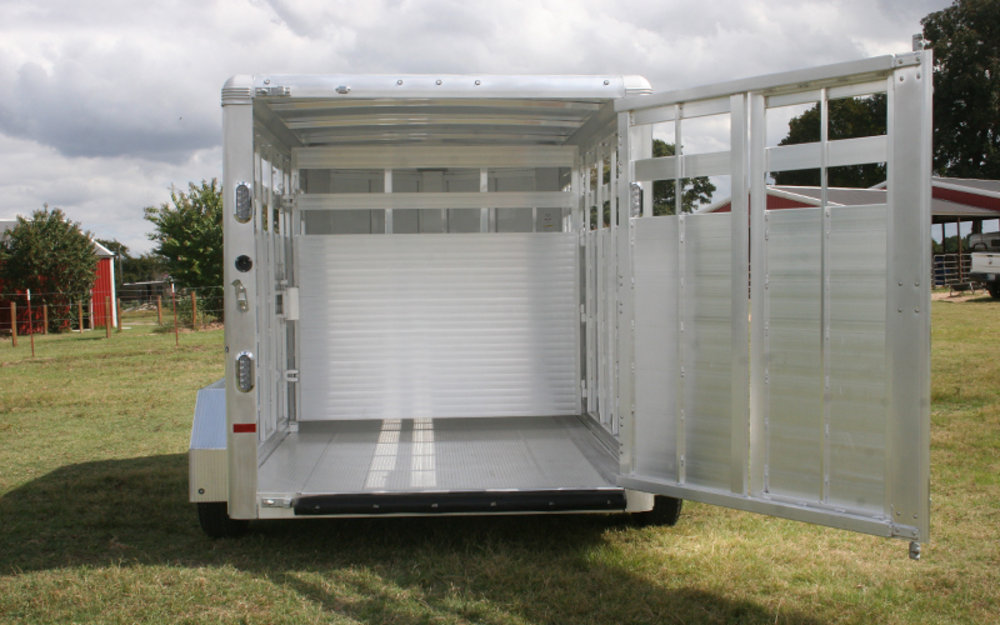

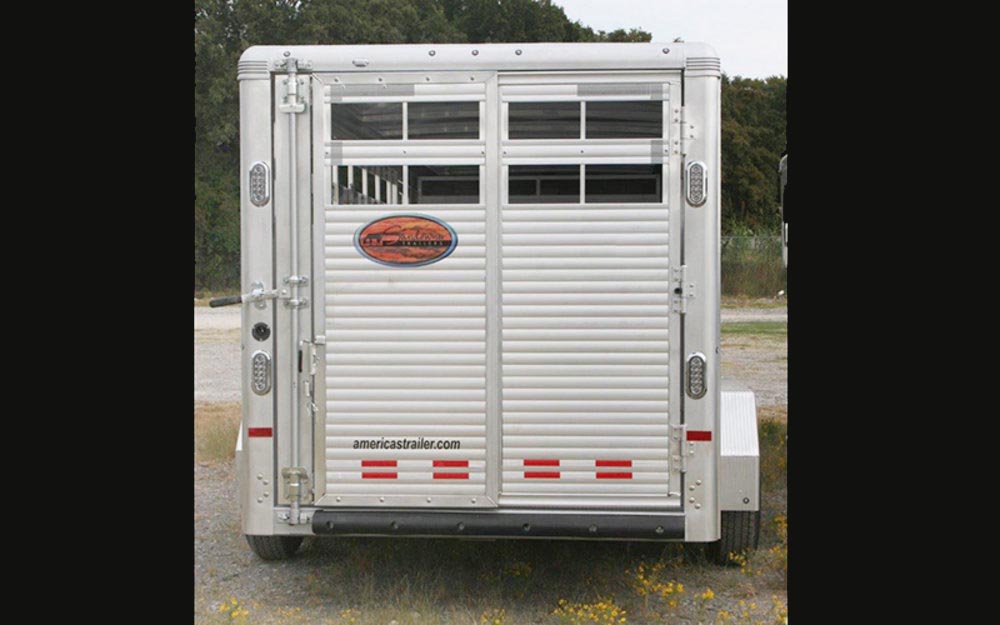

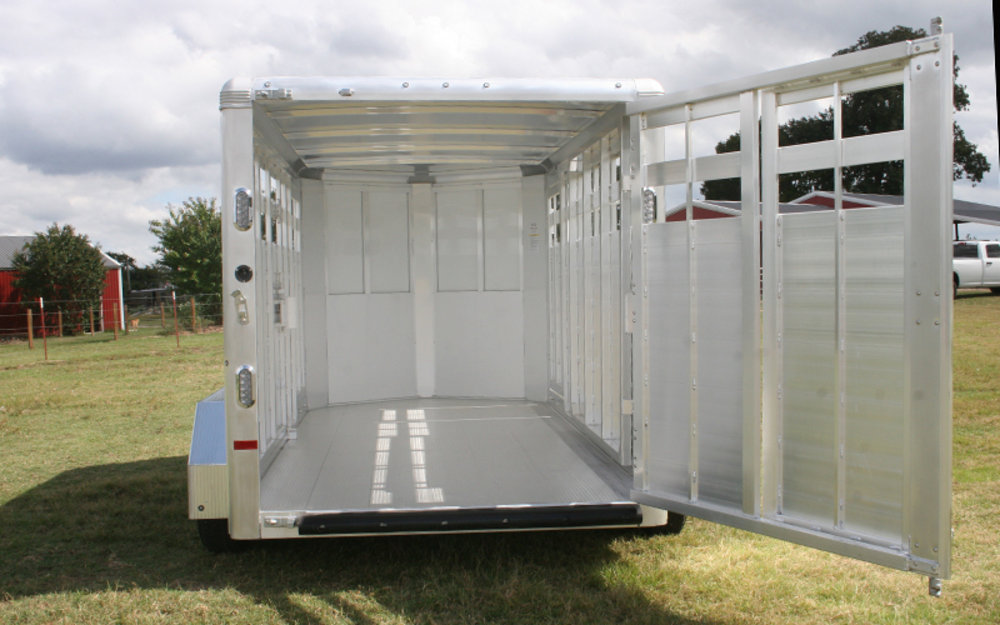

Rear Gate Rear gate with sliding calf gate
Side Door 2 Side access doors with full height cam latch
Safety Lights Extra LED clearance & marker lights
Tail Lights 4 Tail lights
Axles/Brakes Rubber torsion axles
4 Wheel electric brakes with safety breakaway
Bumper Rear rubber bumper
Wheels/Tires Aluminum wheels with radial tires
Popular Options
  • Skin colors: white, black, silver, charcoal, champagne
  • Spare tire
  • Dome lights
  • Loading lights
  • Clearance lights
  • Plexiglas
  • Tackroom
  • Side ramp in lieu of one side door (48")
  • Slider in center gate
  • Swinging Center Gate (optional on 12' and 14')

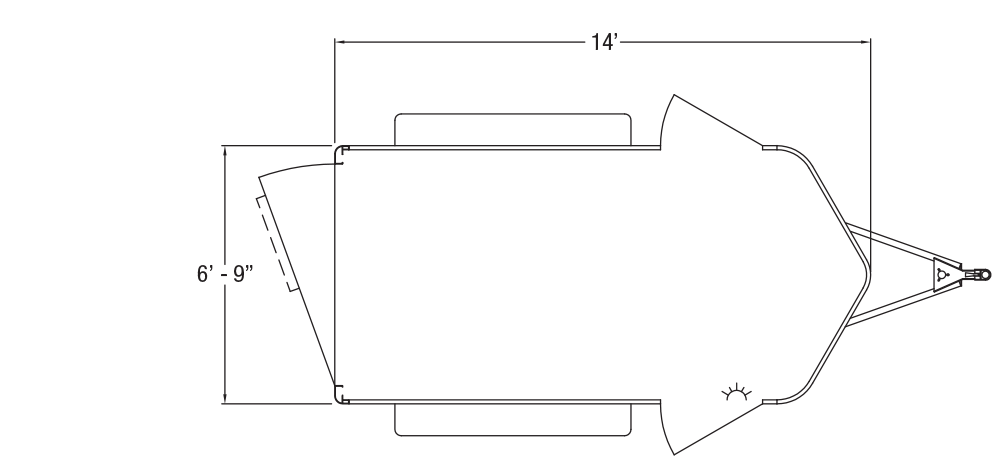

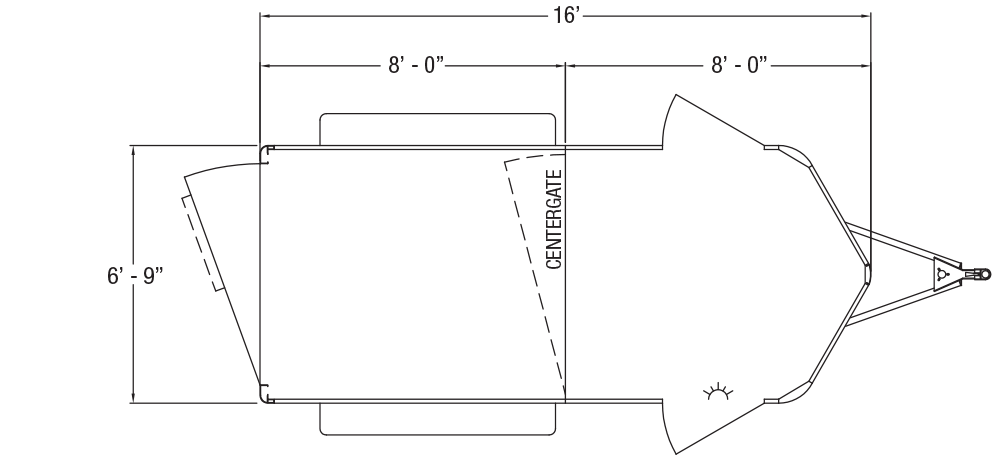

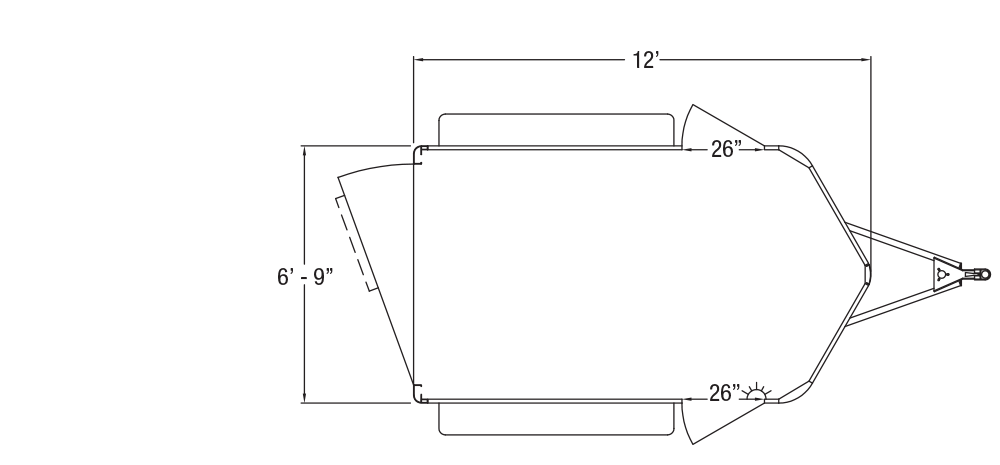

Floorplans

(Click for Larger View)

Sundowner Stockman Express Bumper Pull Trailer Floorplan Sundowner Stockman Express Bumper Pull Trailer Floorplan Sundowner Stockman Express Bumper Pull Trailer Floorplan

*All dimensions are approximate. Photos may show options. Due to constant product improvements, specifications, component parts, standard and optional equipment are subject to change without notice or obligation. See your dealer for warranty details.
