Toy Hauler Garage Model Gooseneck

Toy Hauler Garage Model Gooseneck

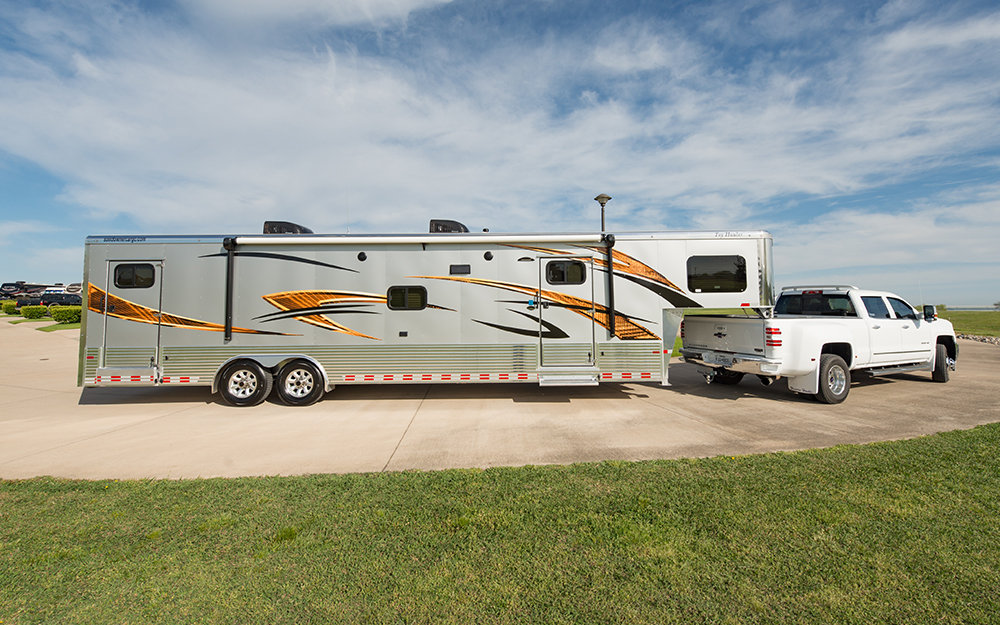

Sundowner Pro-Grade Toy Haulers are designed to transport you and your toys in style and comfort. Whether you want to haul motorcycles, ATVs, snowmobiles or car Sundowner offers endless options to make your trailer uniquely yours. The all aluminum construction means easier towing and longer durability. You’ve invested a lot of time, effort and money into your hobby - when it comes to hauling don’t settle for anything but the best.

Create your perfect interior with the

Sundowner Interior Collection

Find out: "What Is a Toy Hauler (RV with Garage)?"

Video    See a walk through of our Toy Hauler Garage Model Trailers

Trailer Standard Features
Coupler Adjustable Gooseneck, 2 5/16"
Trailer Width 8'6"
Inside Height 7'6" (7'8" on slide-out models)
Construction All aluminum
Floor 4" I-Beam Crossmembers on 12" centers with aluminum plank floor
Wall Tube frame wall with integrated roof rail
Roof One piece 0.040" aluminum over aluminum roof bows
Exterior Full length 24" extruded sides with prepainted aluminum skin above
Polished top rail, rear posts and extruded sides
Windows Frameless windows for entire trailer
Nose Tapered nose with stainless wrap

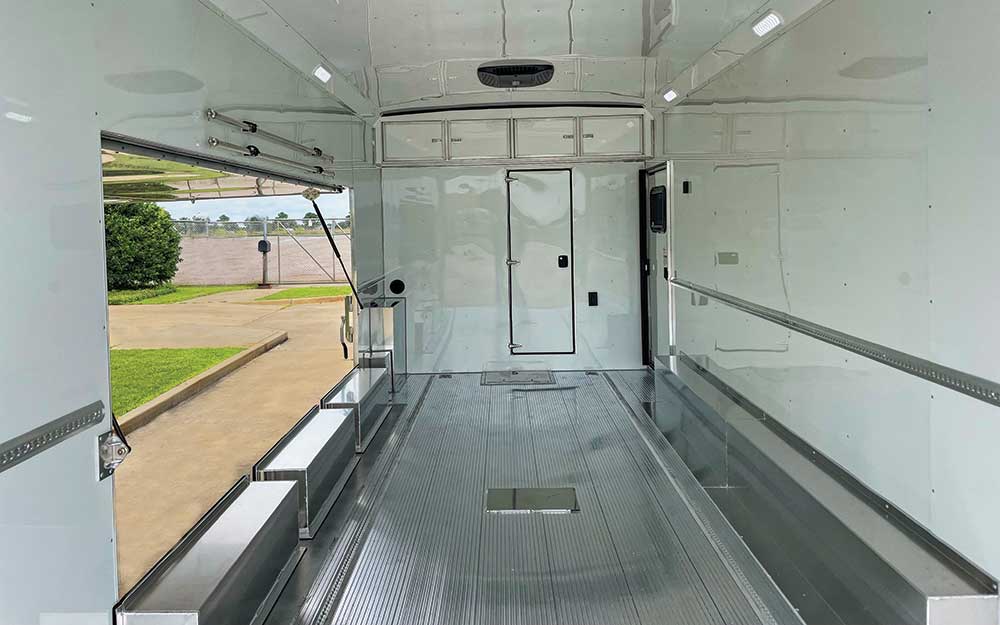

Garage Wall Aluminum wall separating living and garage areas
Garage Area Fully lined & insulated roof and walls
Garage Lighting 4, 4" x 12" LED lights in roof cove
Garage A/C Frame and wire for A/C in garage area
Spoiler Rear spoiler with 3 lights

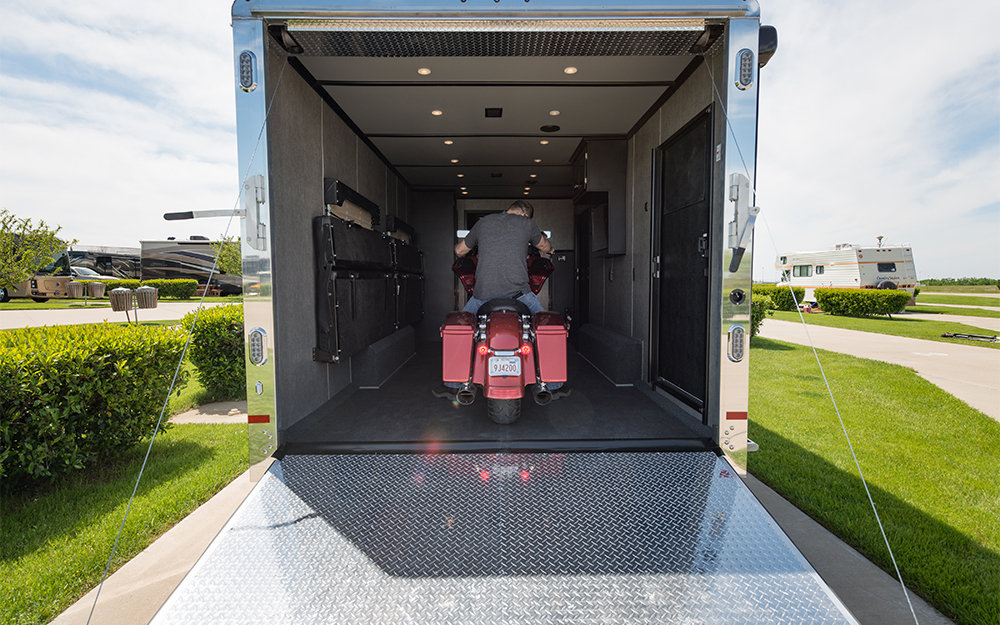

Ramp Full rear ramp with cable assist
Axles/Brakes Spread rubber torsion axles
4 Wheel electric brakes with safety breakaway
Wheels Aluminum
Tires Nitrogen filled radial
Safety Lights LED clearance and 4 tail lights
Clearance light switch in rear post
Porch Lights Light at each side door and 1 under the neck
Jack Hydraulic Jack (Dual Hydraulic Jack on slide-out models)
Batteries Dual battery box with 2 batteries
Hinges Weld-on hinge doors
Tie downs 4 Floor tie downs
Spare Full-size spare tire

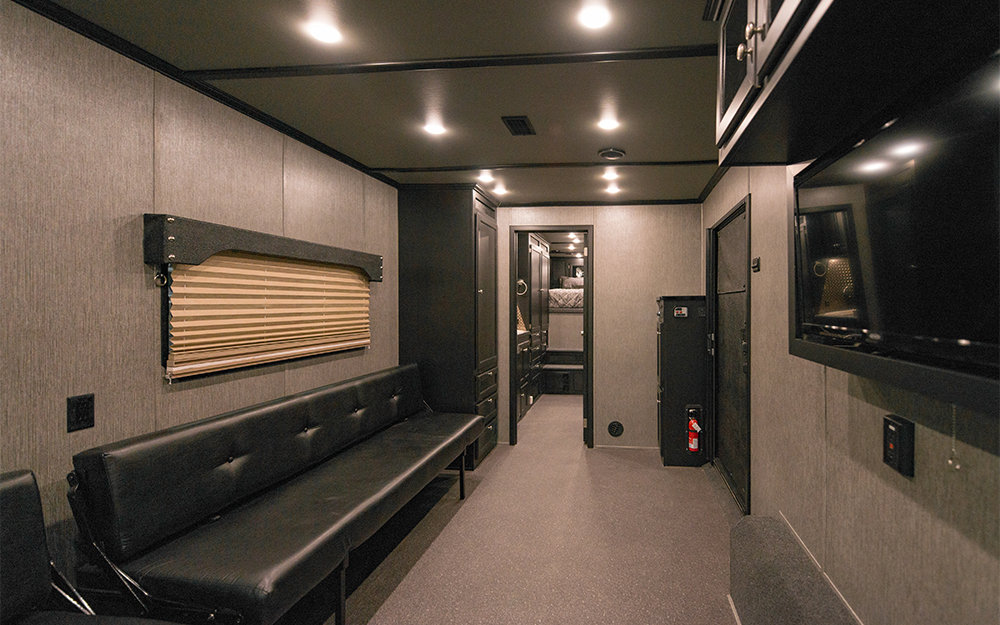

Living Area Standard Features
  • 15000 BTU ducted air conditioner (per plan)
  • 3 cu. ft. gas/electric refrigerator where applicable
  • 8 cu. ft. 12V refrigerator where applicable
  • Recessed glass cooktop where applicable
  • Range hood w/ exhaust fan

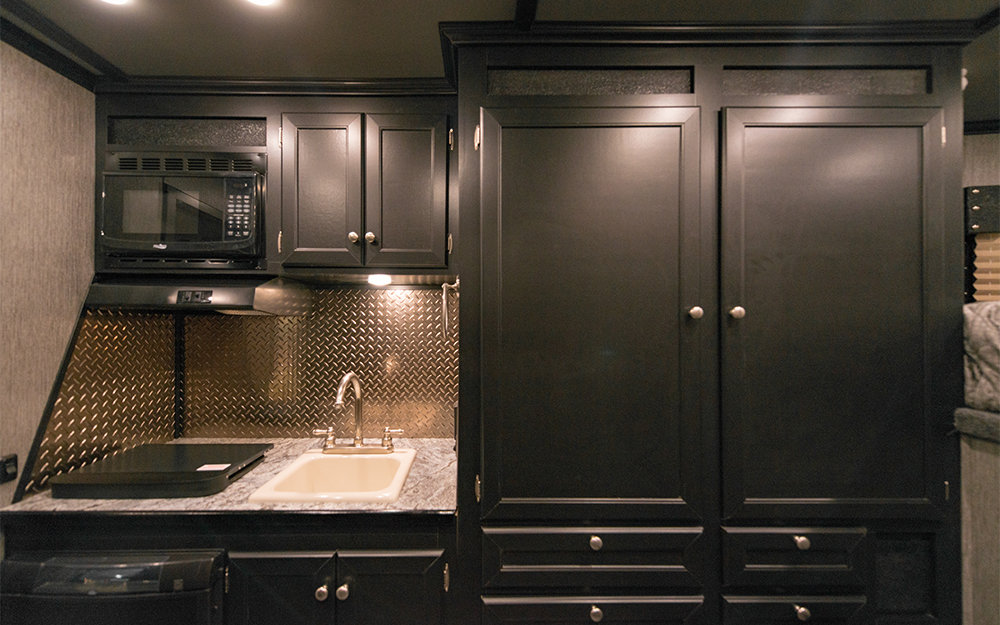

  • Microwave

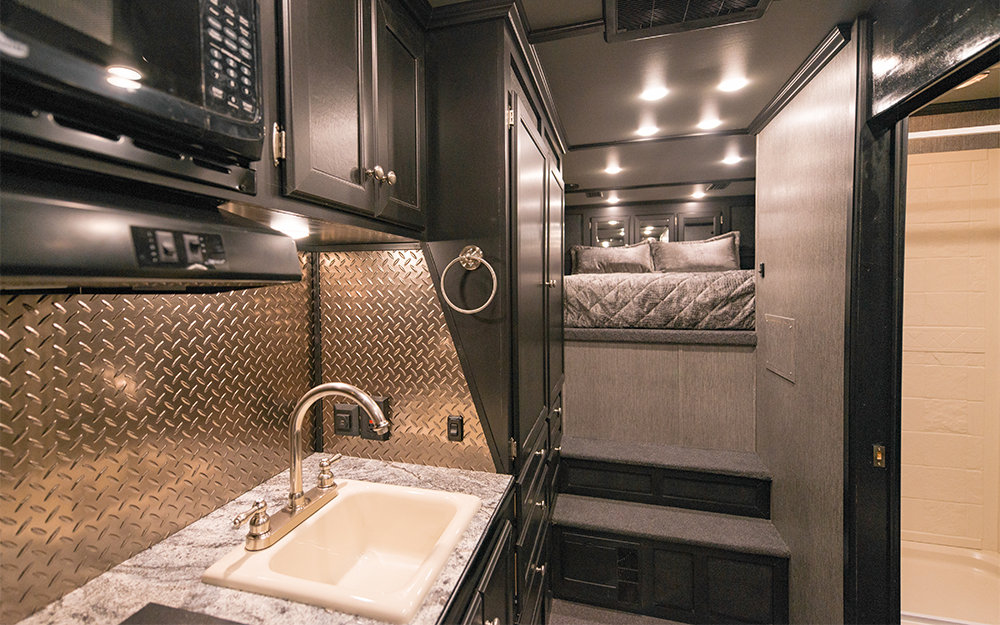

  • Single bowl kitchen sink w/ sink cover
  • Crank up TV Antenna
  • AM/FM radio CD/DVD player with interior and exterior speakers
  • Day/night shades
  • Mattress w/ Bed spread
  • Electric lighted awning
  • Hidden screen door
  • Porcelain Toilet
  • 110v outlets & USB outlets per plan
  • Flip up counter where applicable
  • Reading lights above night stands
  • 100 Watt solar battery charger
  • Prewire for satellite
  • Park cable hook up
  • Emergency exit windows
  • Shower with glass shower door (Round shower where applicable)
  • Deluxe Power roof vent in bathroom w/ wall mount controls
  • Exterior 110V outlet
  • Outside water spigot
  • Deluxe entry lighted grab handle at each entry door
  • Fresh water tank (size depends on floor plan)
  • 12 volt demand water pump
  • City water hook up
  • 31 gallon black water tank
  • 31 gallon gray water tank
  • Sewer dump hose and storage compartment
  • 2 - 20lb. propane tanks with automatic change over valve
  • 6 gallon LP elec/gas water heater automatic recovery
  • Water drains and water heater bypass for easy winterizing
  • (1) Furnace with 20 lb tanks on all models
  • (2) Furnaces with 40 lb tanks on 3986
  • Heavy duty 65 amp 12 volt power converter battery charger
  • 12 volt charge line to truck
  • 12 volt battery disconnect switch
  • Deep cycle batteries
  • 50 amp marine style 30ft power cord lifeline
  • LP gas leak detector
  • Smoke alarm and fire extinguisher
  • Consumer protection seals
  • Code approved in all 50 states
Popular Options
  • Skin colors: white, black, silver, charcoal, champagne
  • External graphics

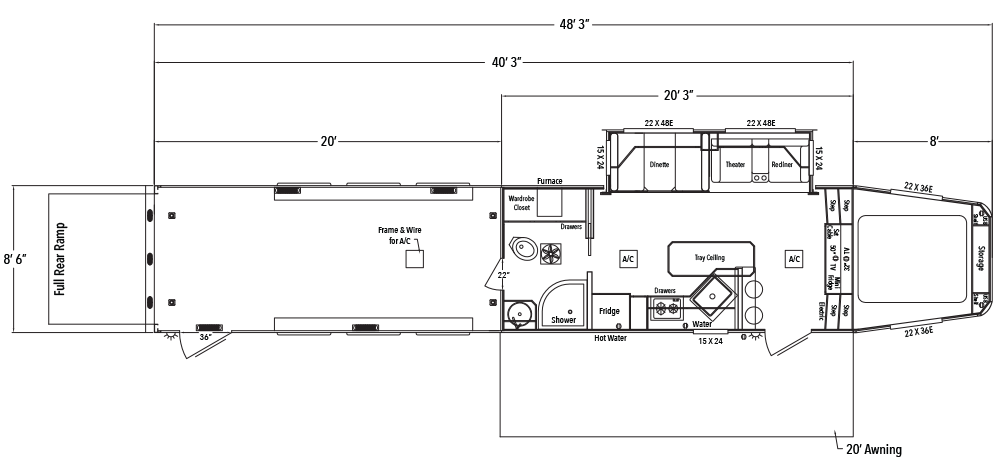

Floorplans

(Click for Larger View)

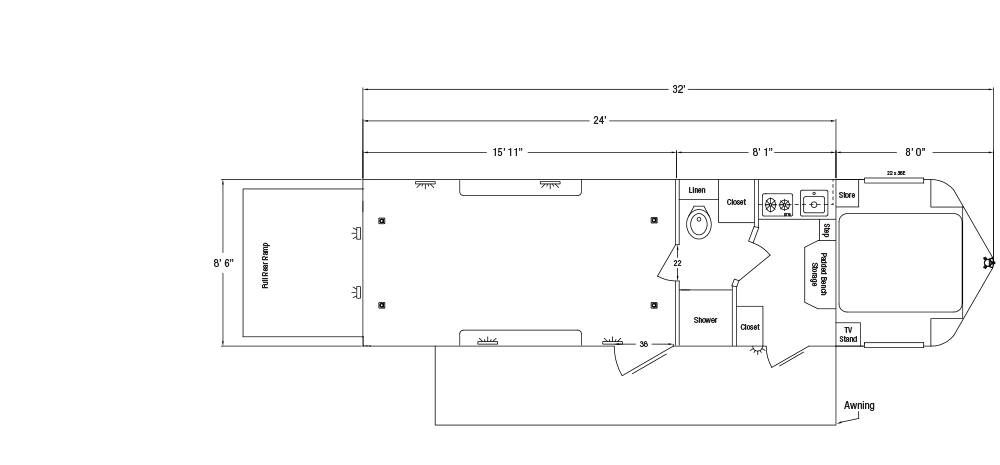

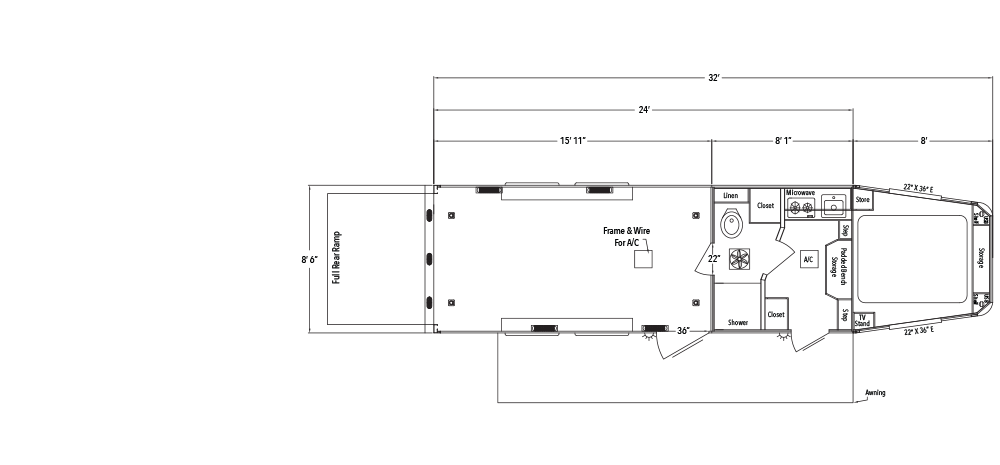

1686GM
Sundowner Toy Hauler Garage Model Gooseneck Trailer Floorplan

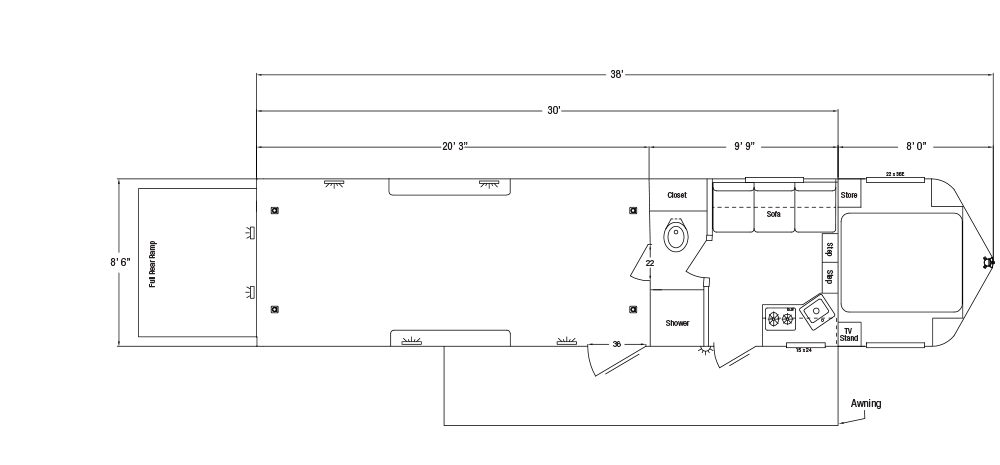

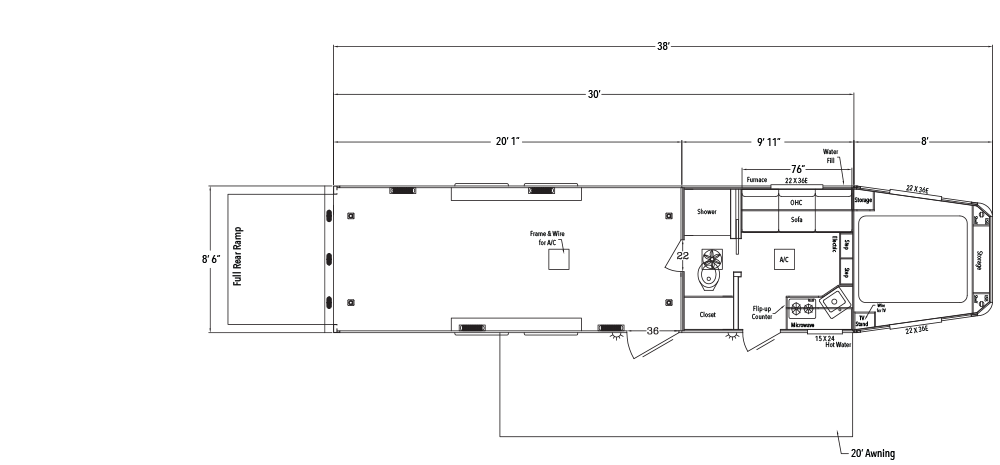

1786GM
Sundowner Toy Hauler Garage Model Gooseneck Trailer Floorplan

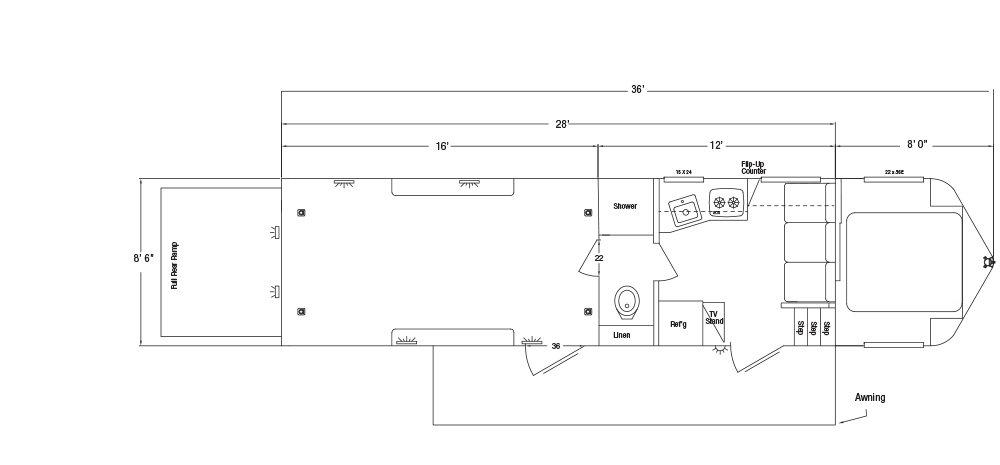

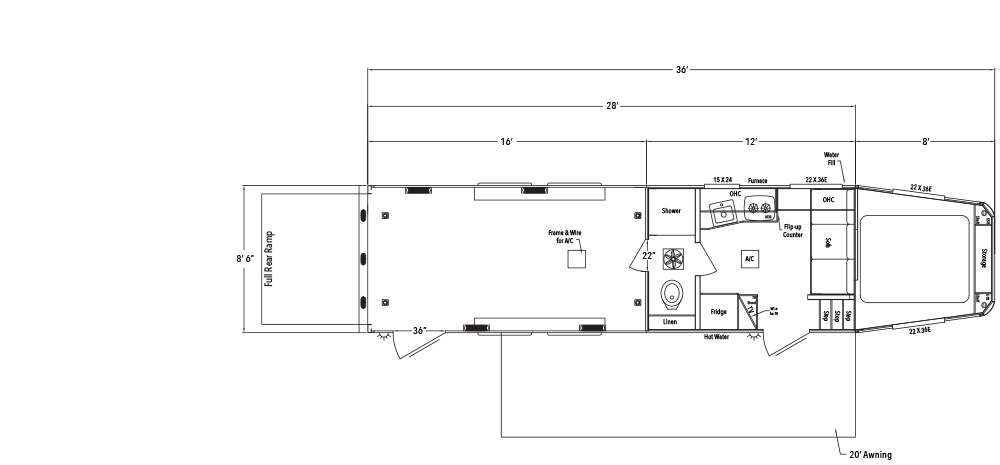

2086GM
Sundowner Toy Hauler Garage Model Gooseneck Trailer Floorplan

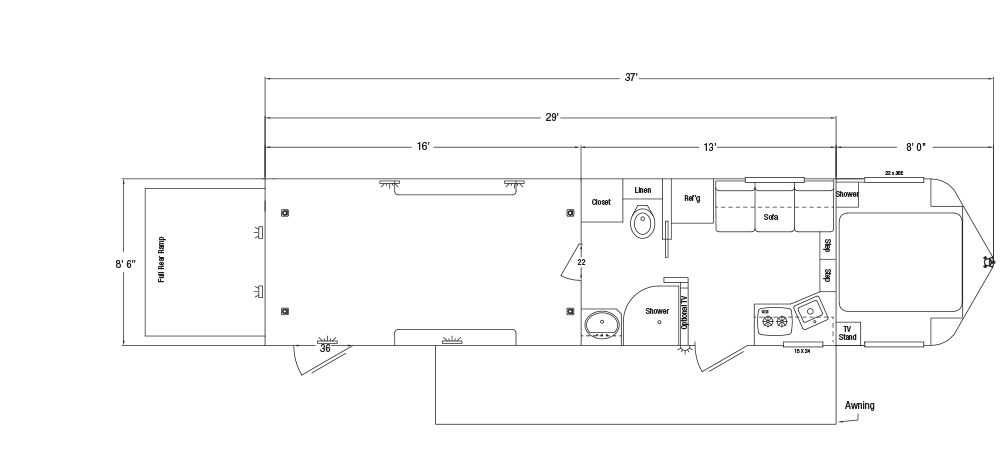

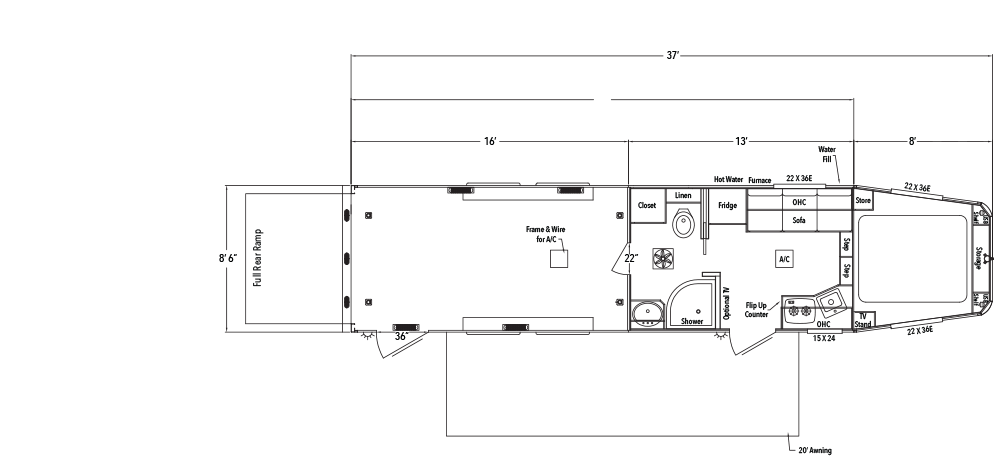

2186GM
Sundowner Toy Hauler Garage Model Gooseneck Trailer Floorplan

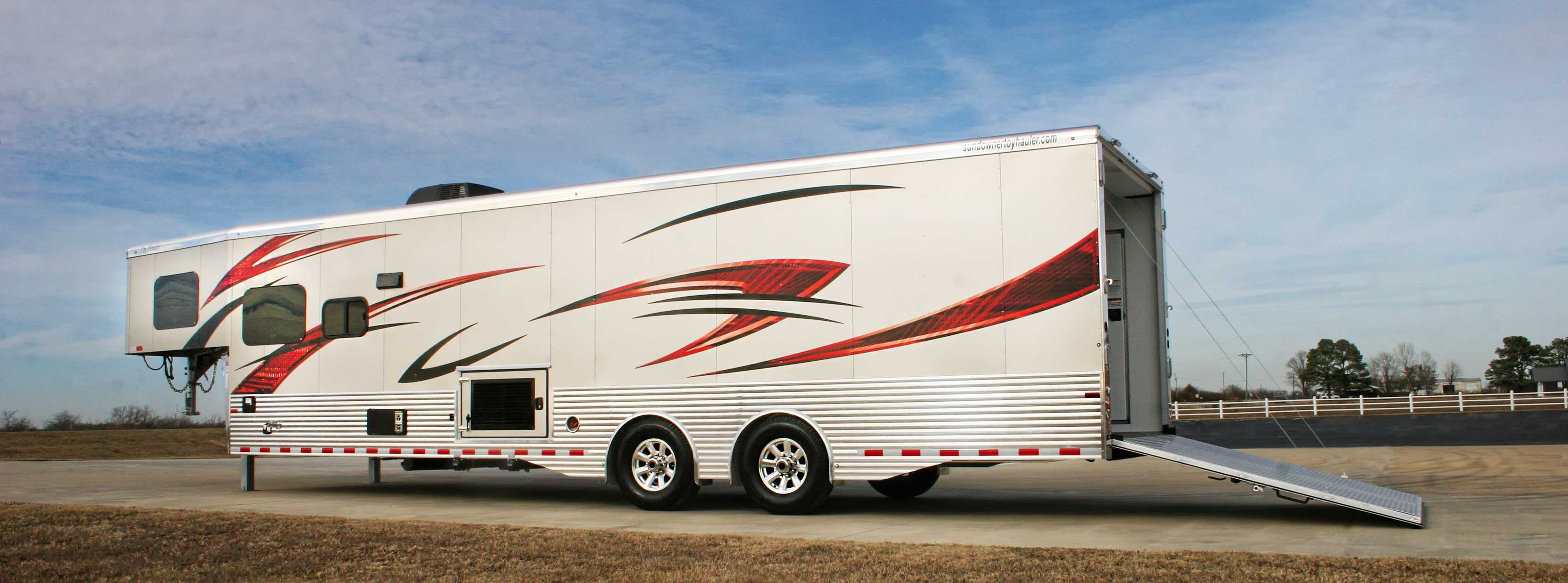

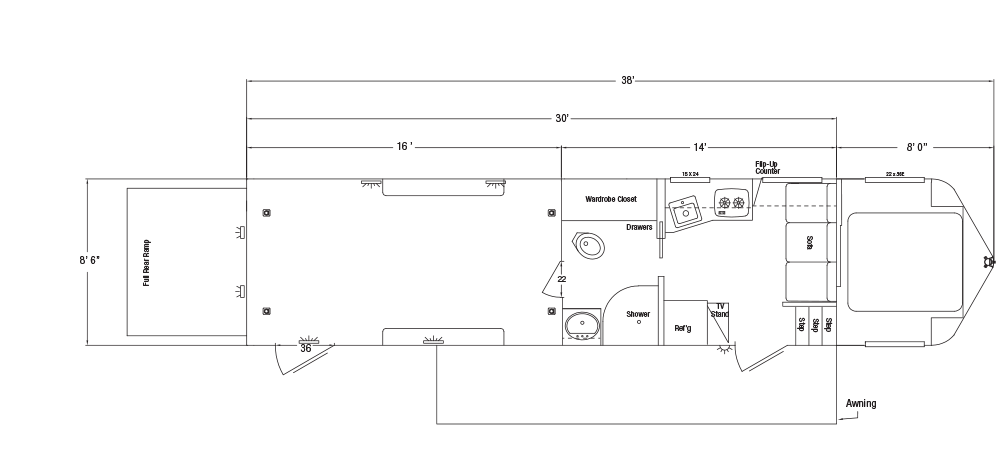

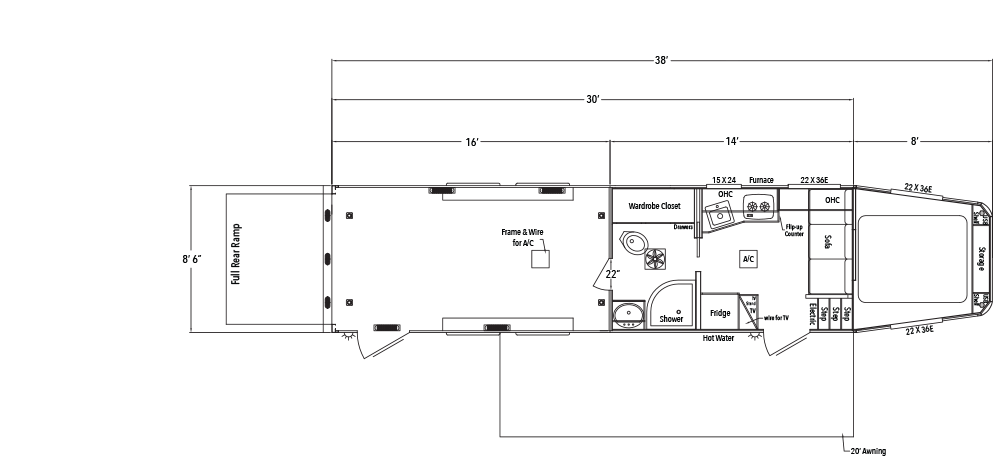

2286GM
Sundowner Toy Hauler Garage Model Gooseneck Trailer Floorplan

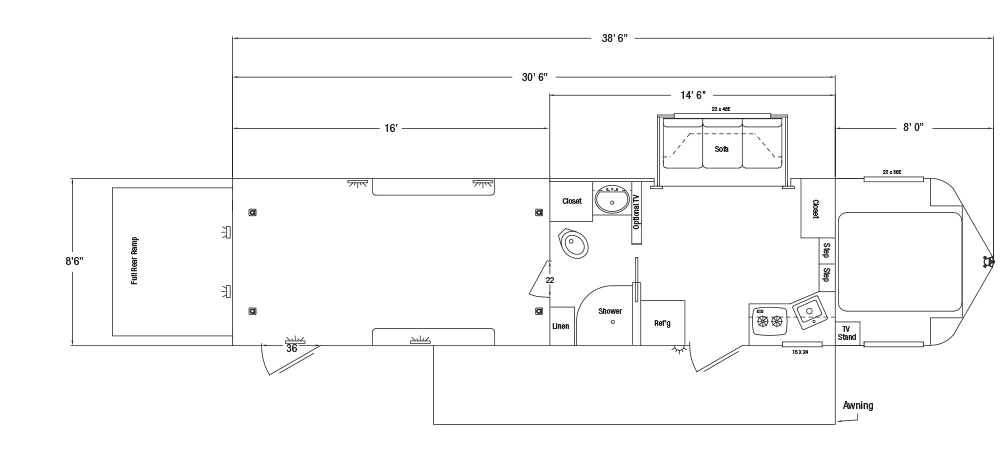

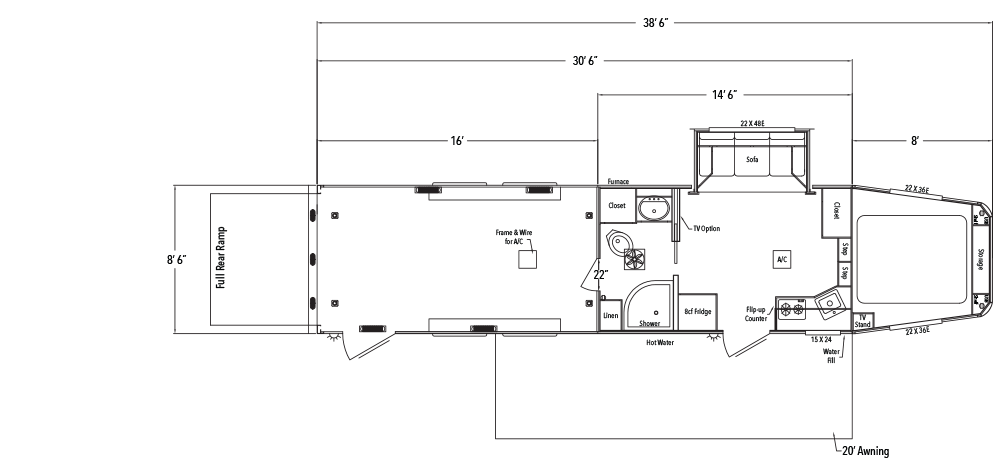

2286SGM
Sundowner Toy Hauler Garage Model Gooseneck Trailer Floorplan

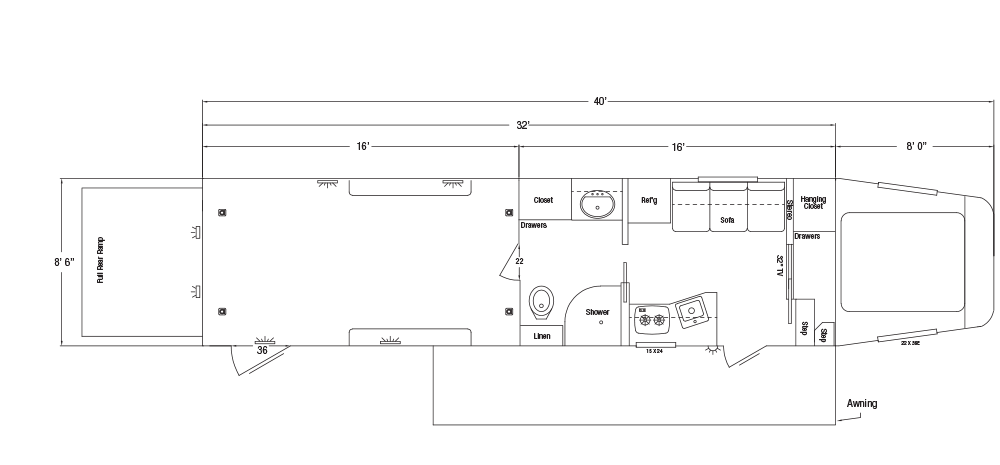

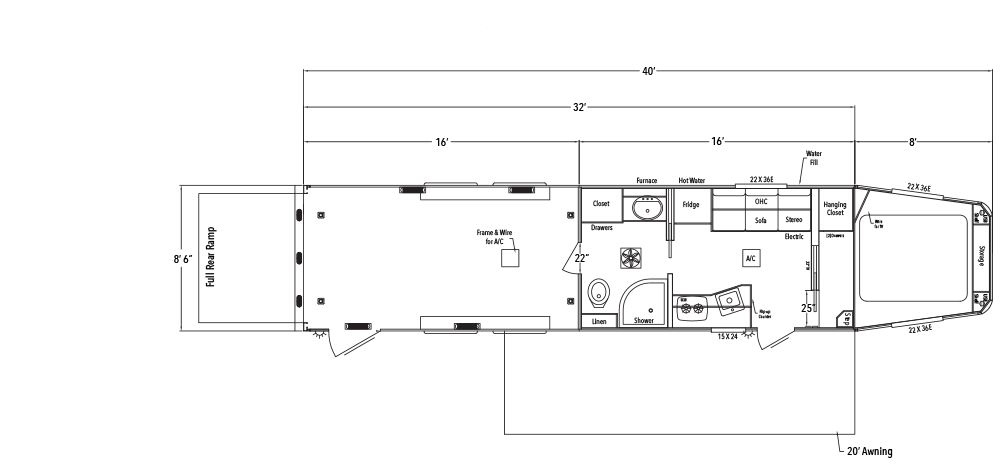

2486GM
Sundowner Toy Hauler Garage Model Gooseneck Trailer Floorplan

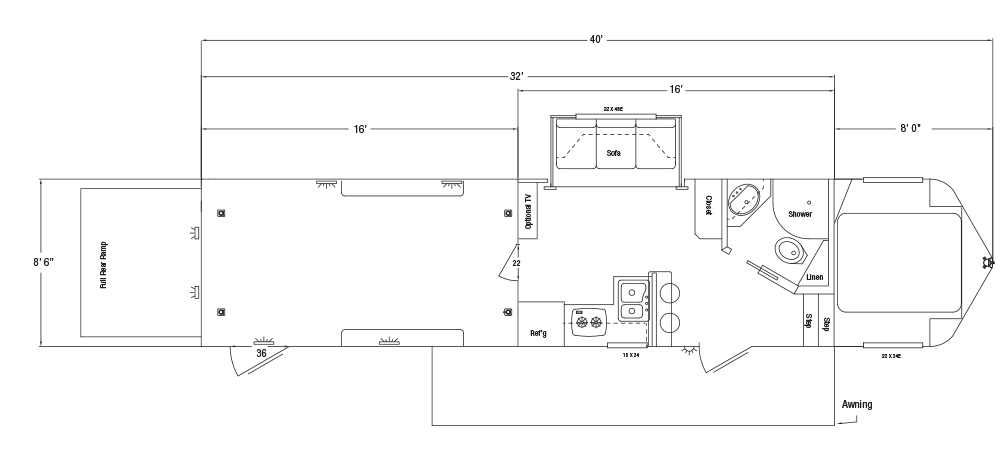

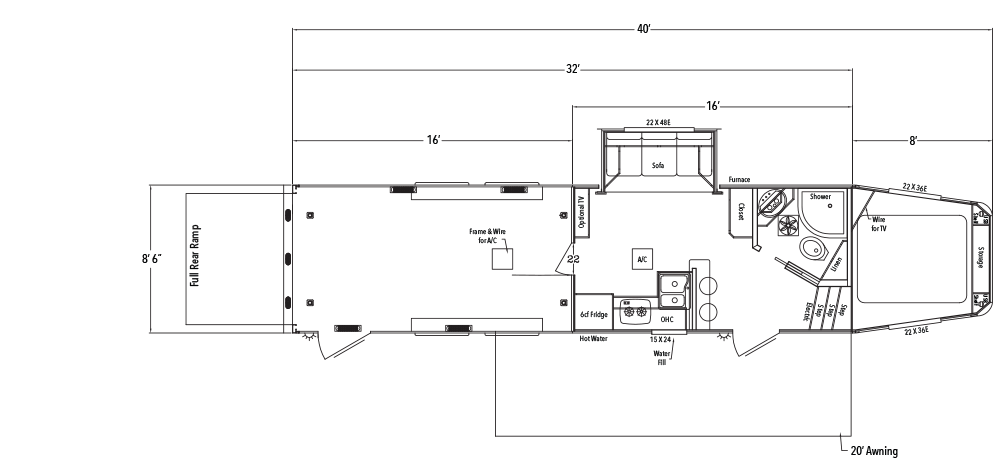

2486SGM
Sundowner Toy Hauler Garage Model Gooseneck Trailer Floorplan

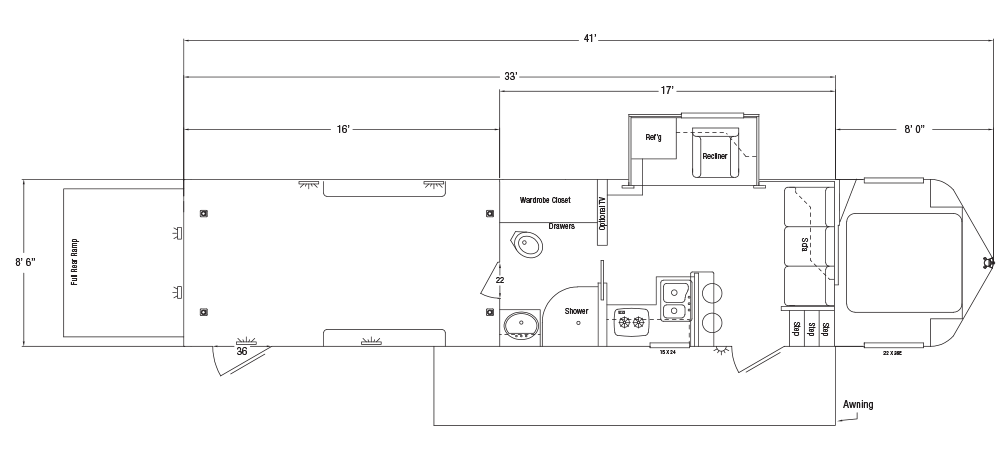

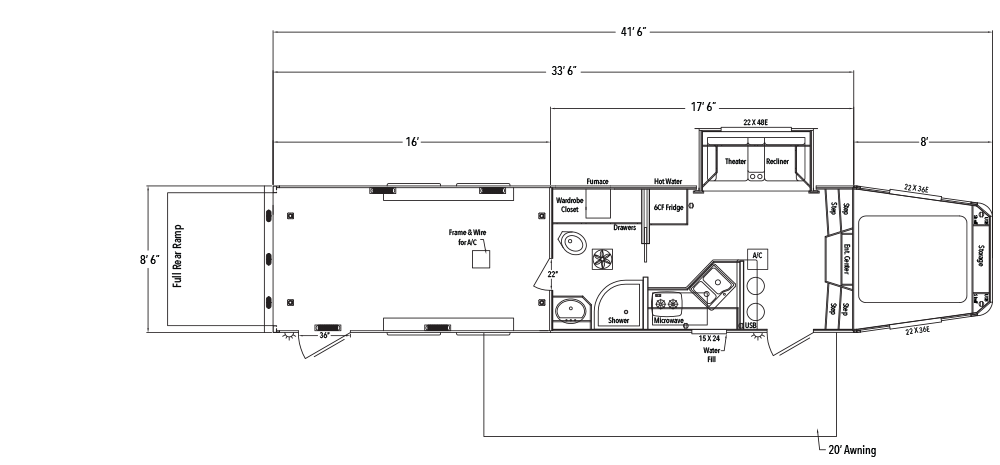

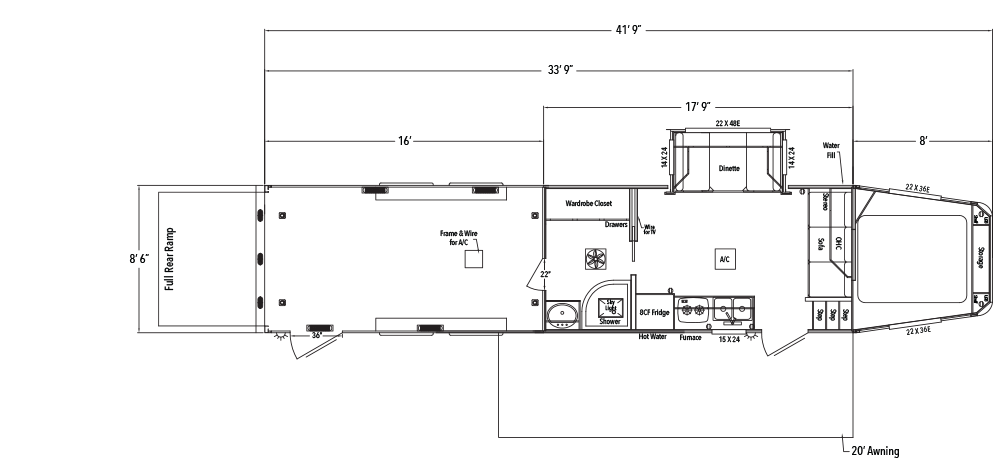

2586SGM
Sundowner Toy Hauler Garage Model Gooseneck Trailer Floorplan

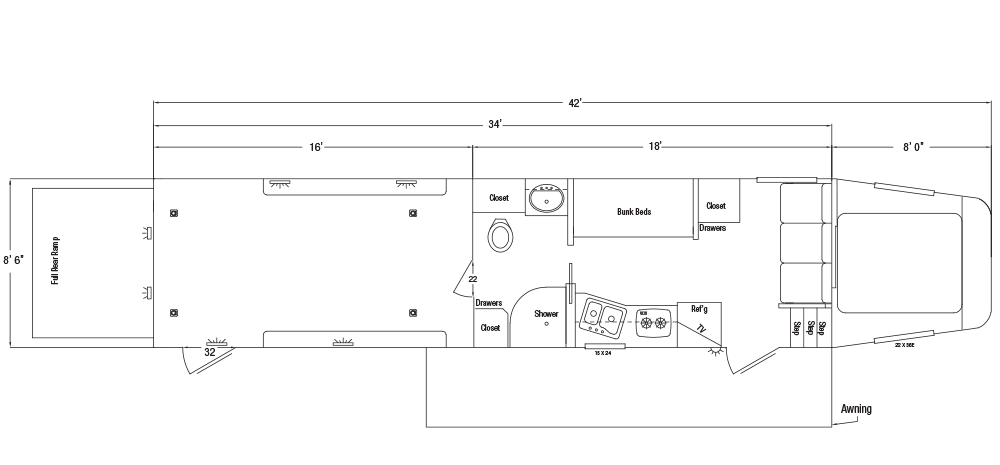

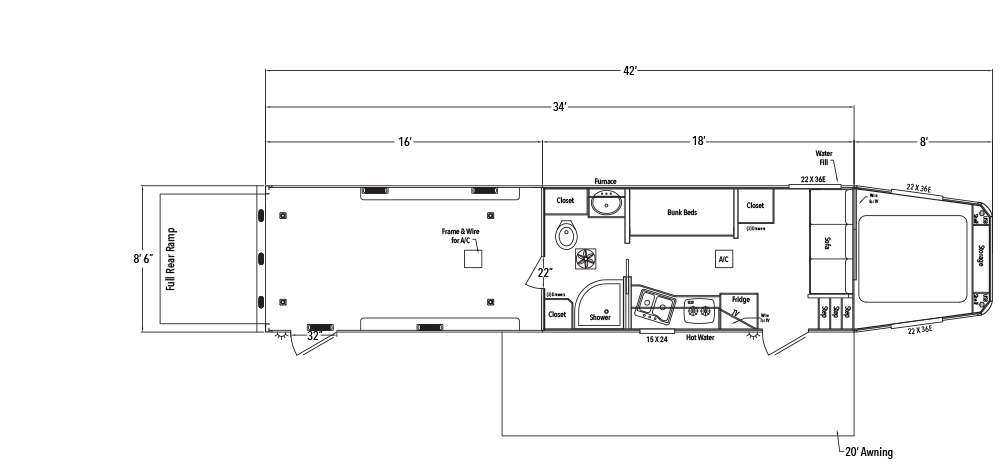

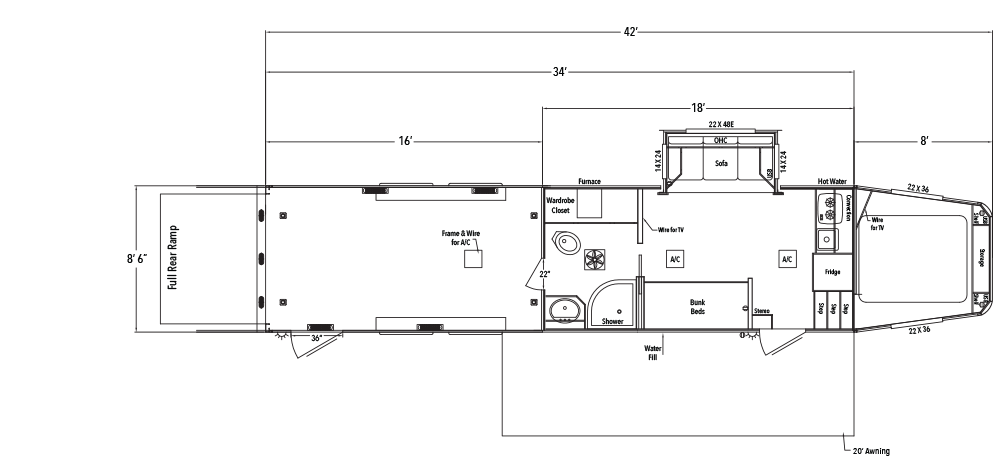

2686GM
Sundowner Toy Hauler Garage Model Gooseneck Trailer Floorplan

*All dimensions are approximate. Photos may show options. Due to constant product improvements, specifications, component parts, standard and optional equipment are subject to change without notice or obligation. See your dealer for warranty details.
