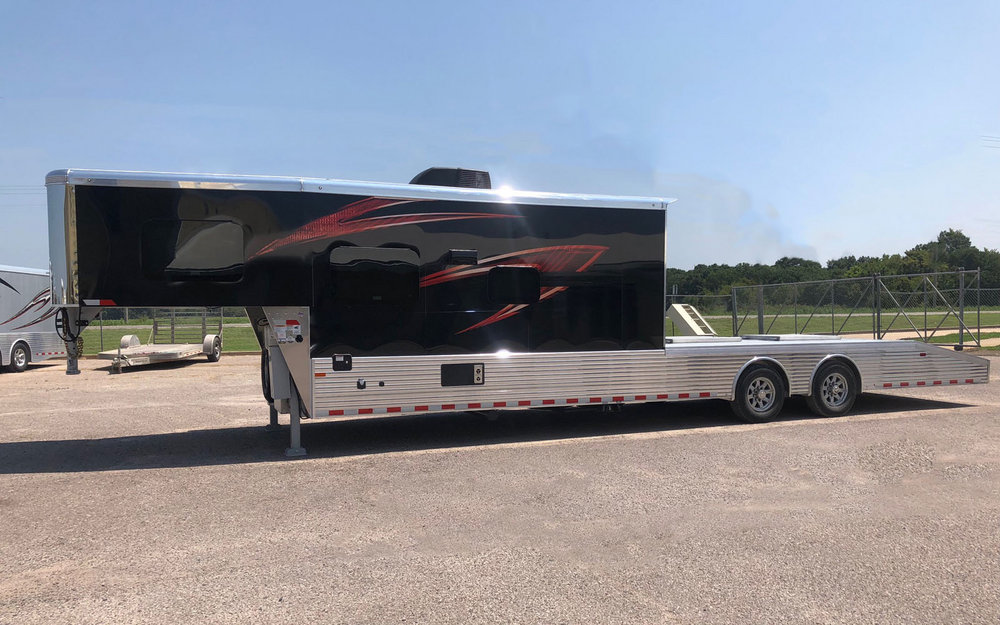

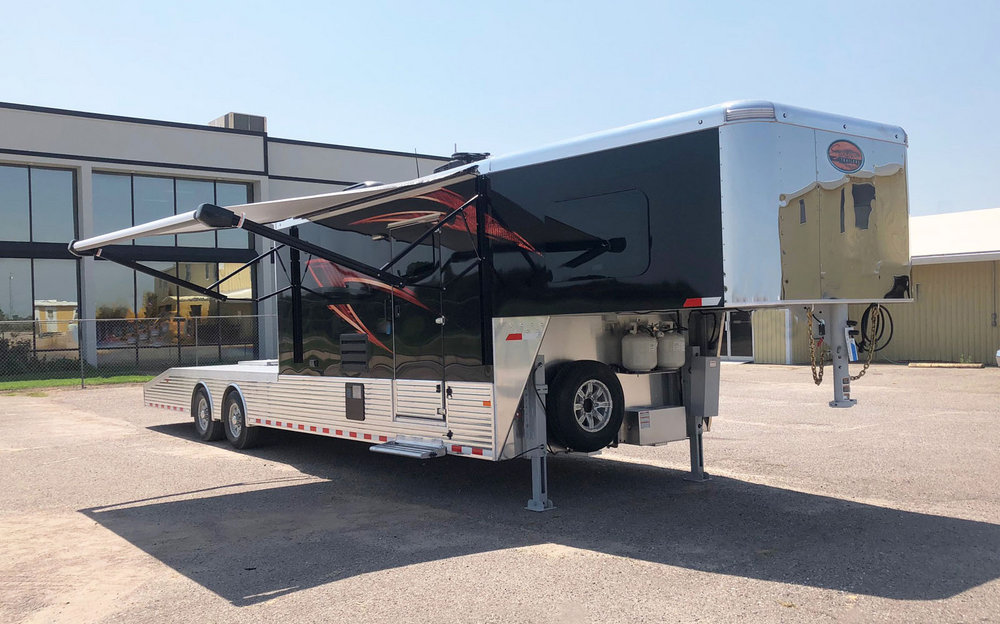

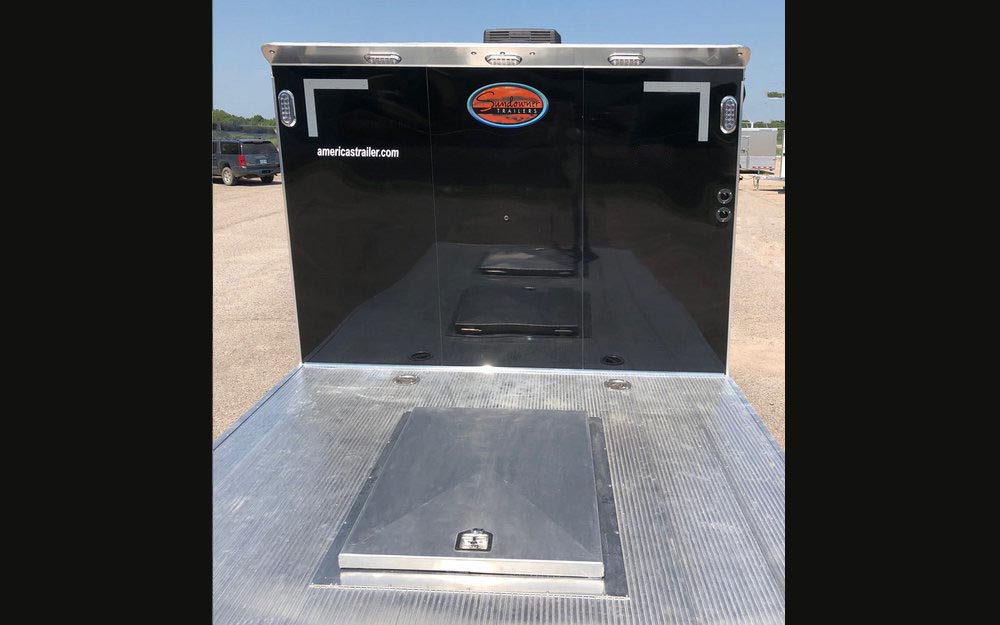

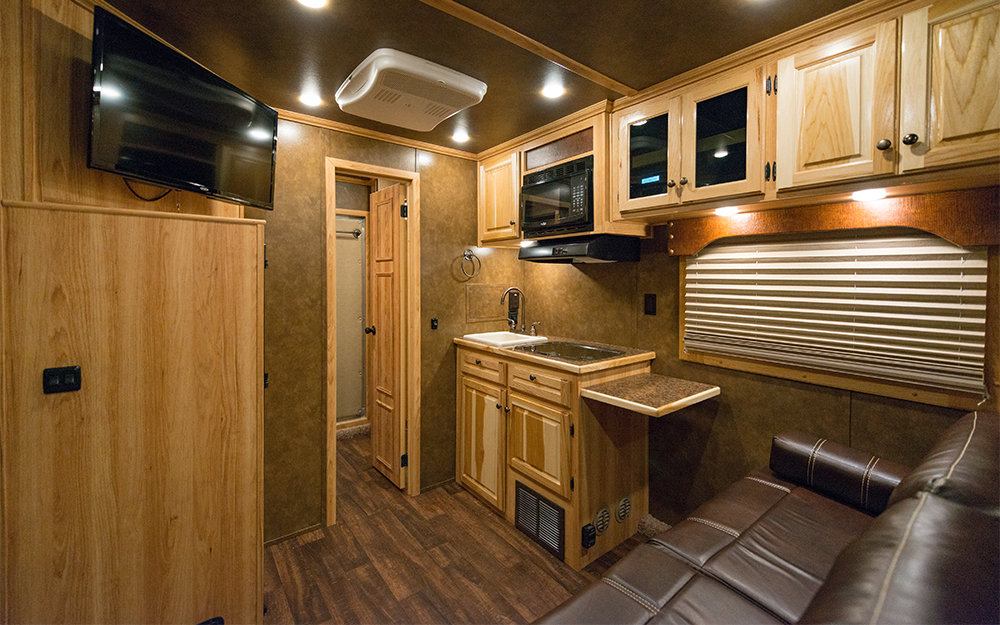

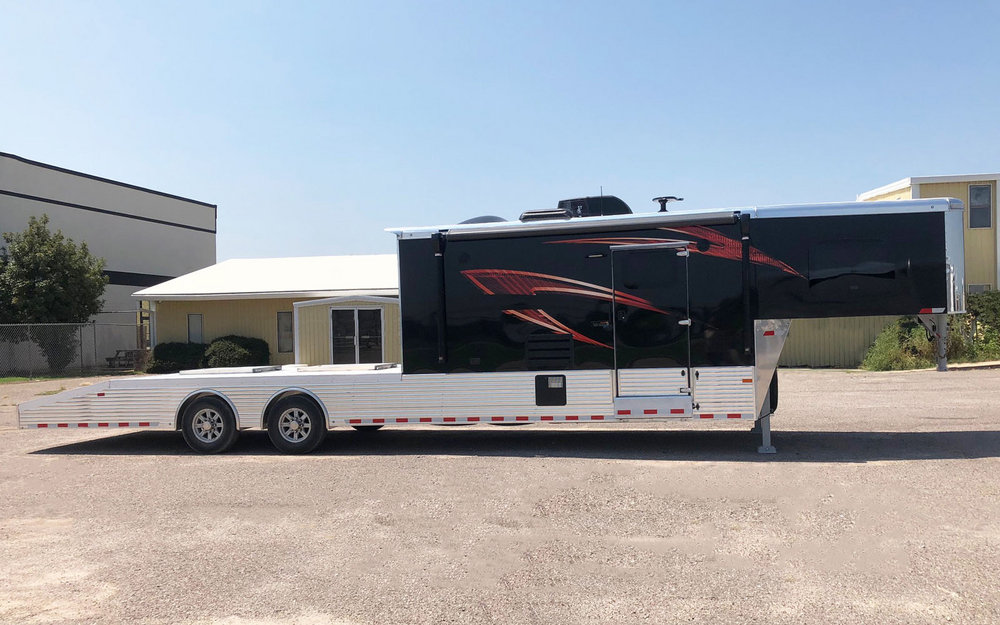

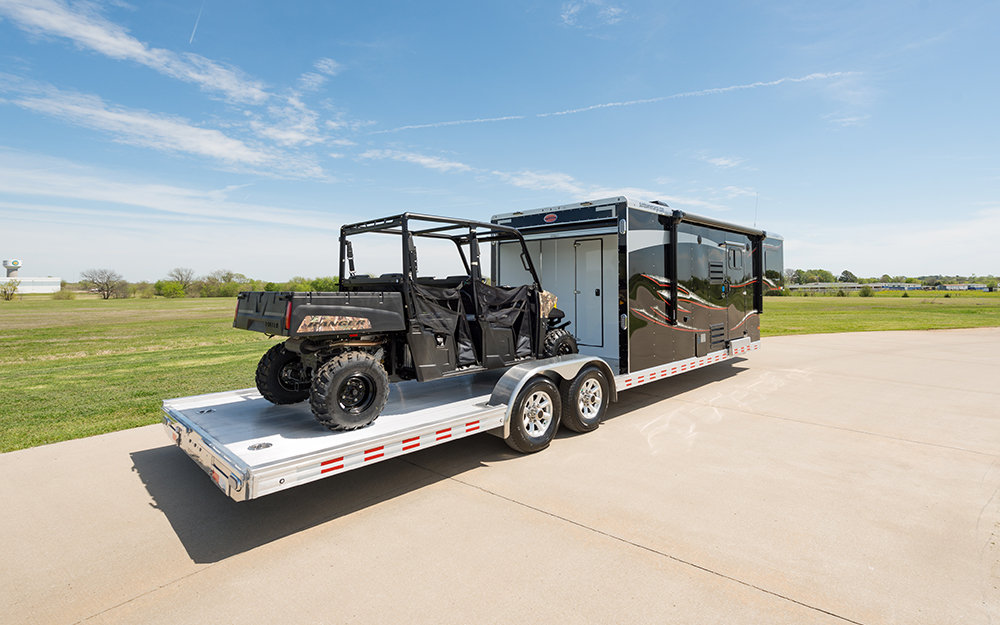

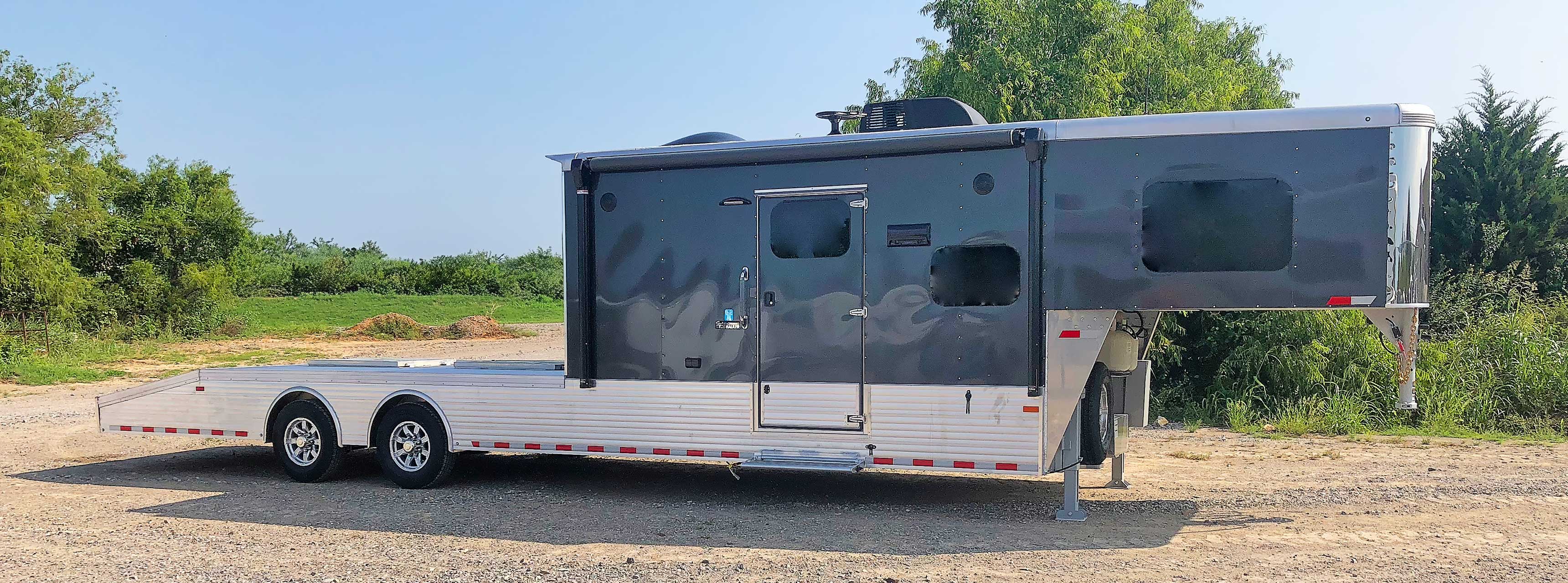

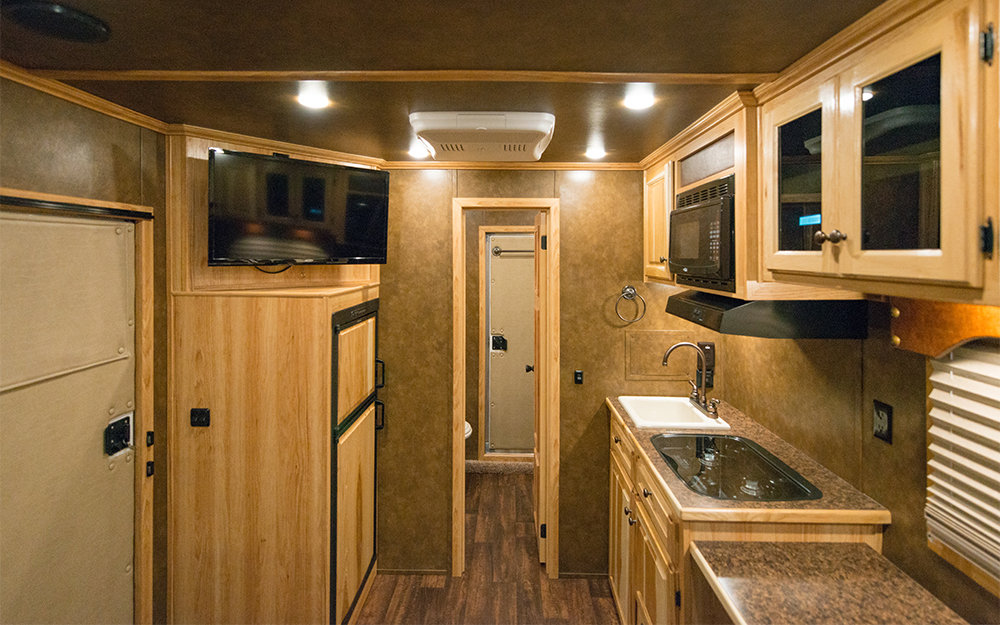

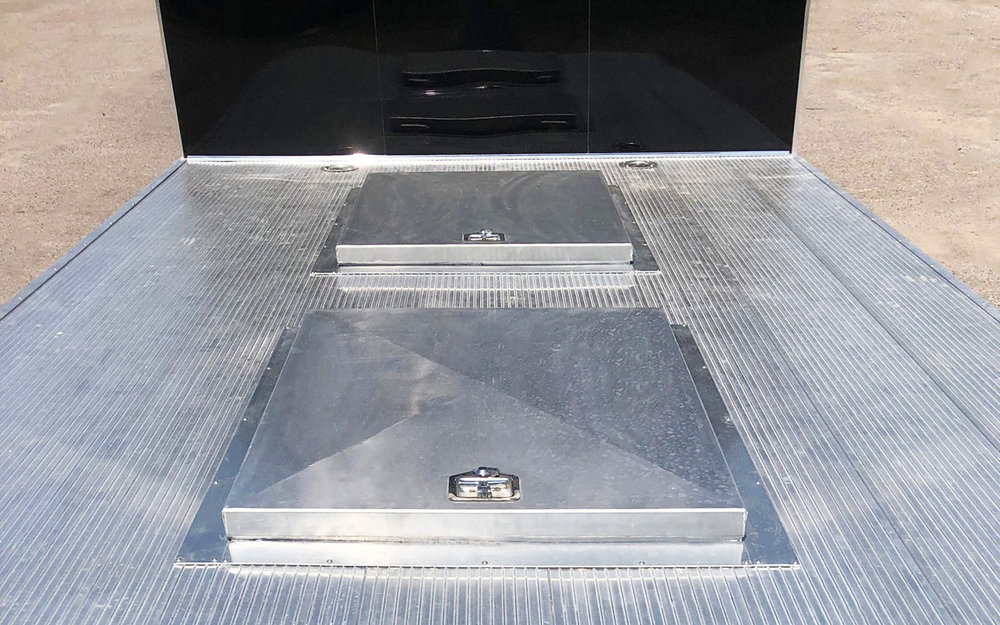

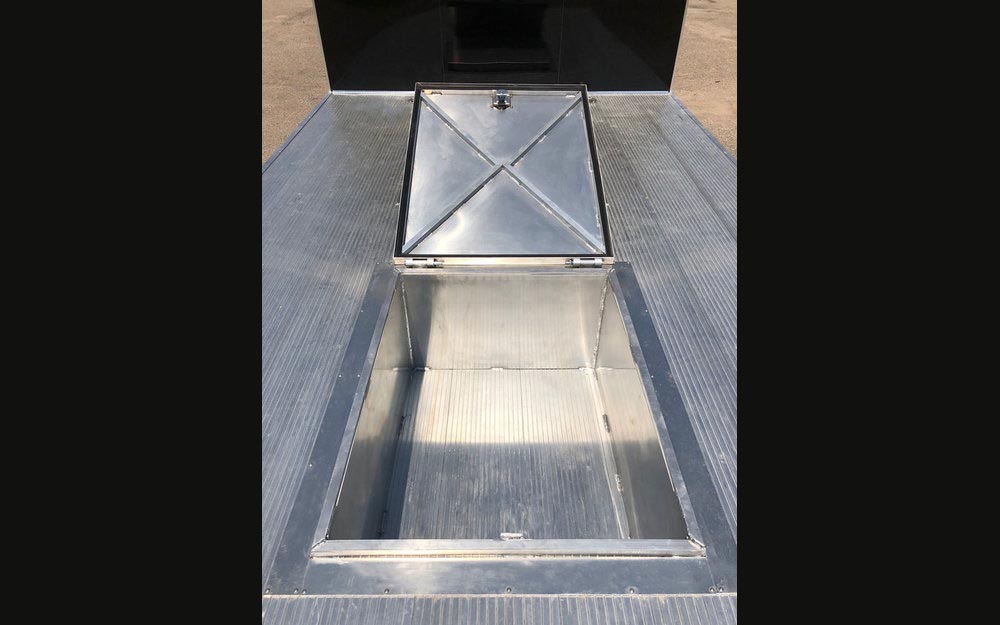

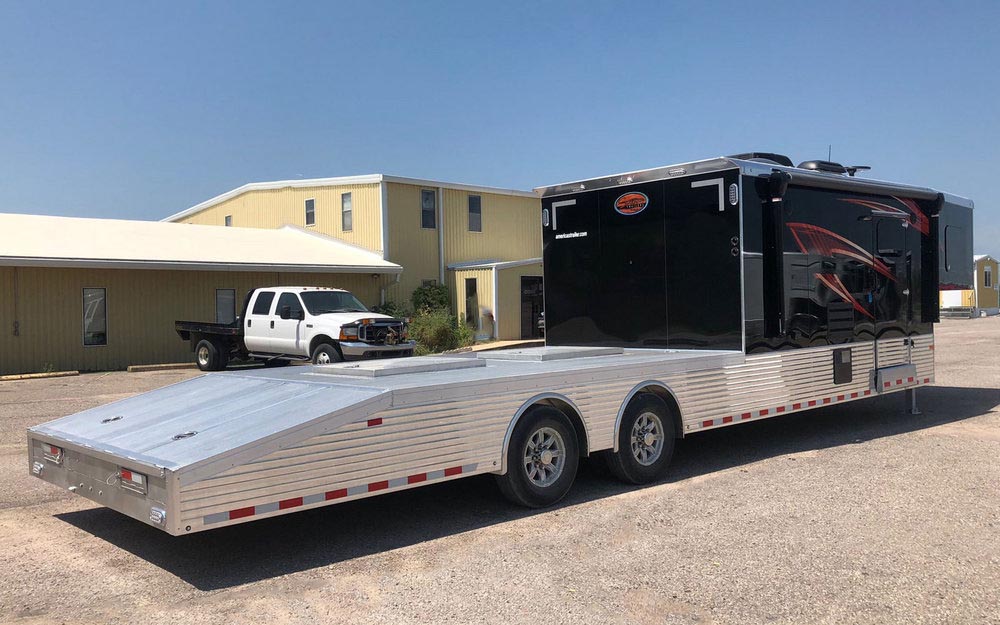

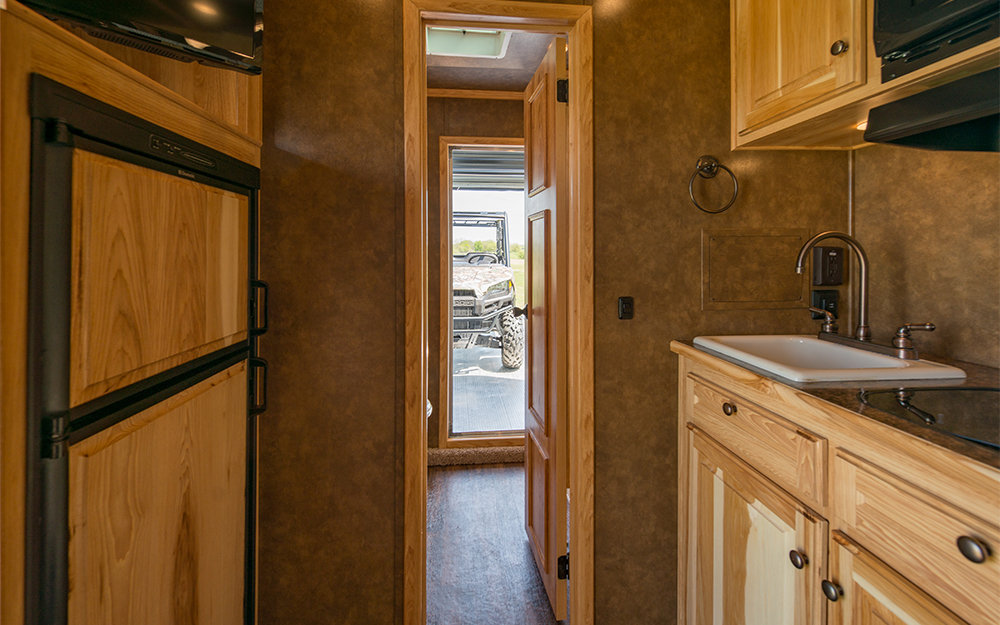

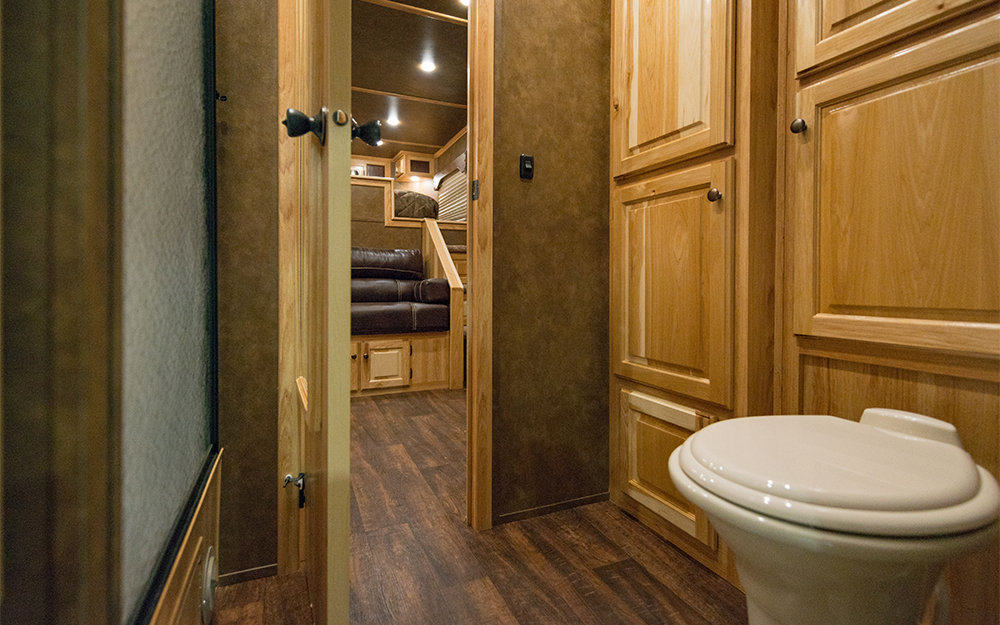

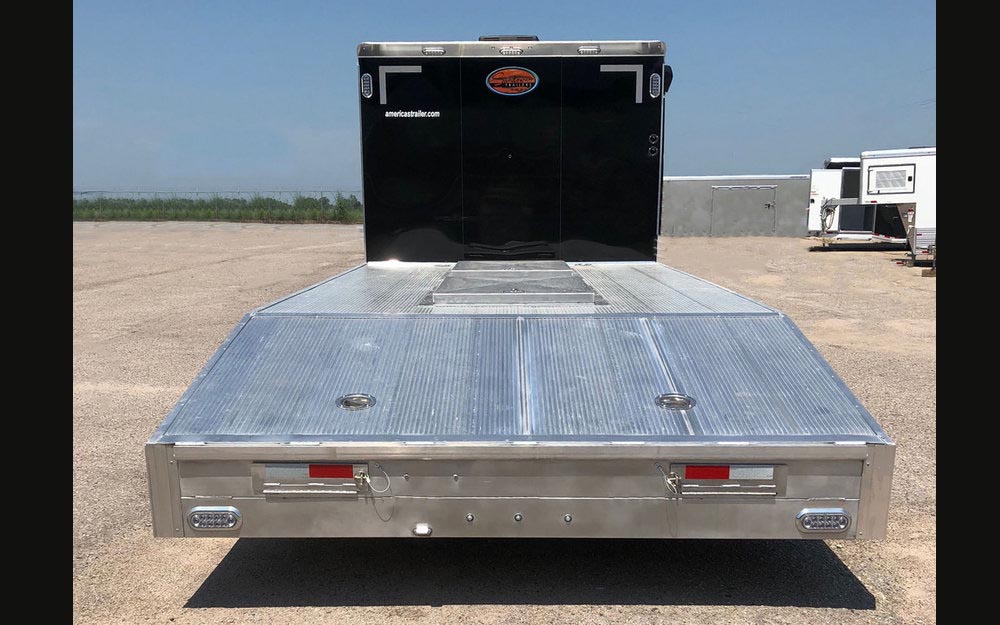

Sundowner Pro Grade Toy Haulers have become the premier choice for the distinguished adventurer. The Krawler Hauler takes adventure off-road! Created with off-road jeep crawling in mind, the Krawler has a beefed up open deck with two lockable storage boxes in the rear and living quarters with or without slide out room. Offering four standard floor plans with customization welcome, Sundowner can make your off road dreams a reality. The Krawler is built with the all aluminum construction and integrity you’ve come to expect from a Sundowner.
Download the Product Sheet
| Coupler | Adjustable Gooseneck, 2 5/16" |
| Trailer Width | 8'6" |
| Inside Height | 7'6" (7'8" on slide-out models) |
| Construction | All aluminum |
| Floor | 4" I-Beam Crossmembers on 12" centers with aluminum plank floor |
| Wall | Tube frame wall with integrated roof rail |
| Roof | One piece 0.040" aluminum over aluminum roof bows |
| Exterior | Full length 24" extruded sides with prepainted aluminum skin above Polished top rail, rear posts and extruded sides |
| Windows | Frameless windows for entire trailer |
| Nose | Tapered nose with stainless wrap |
| Spoiler | Rear spoiler with 3 lights |
| Ramp | Full rear ramp with cable assist |
| Axles/Brakes | Spread rubber torsion axles 4 Wheel electric brakes with safety breakaway |
| Wheels | Aluminum |
| Tires | Nitrogen filled radial |
| Safety Lights | LED clearance and 4 tail lights Clearance light switch in rear post |
| Porch Lights | Light at each side door and 1 under the neck |
| Jack | Hydraulic Jack (Dual Hydraulic Jack on slide-out models) |
| Batteries | Dual battery box with 2 batteries |
| Hinges | Weld-on hinge doors |

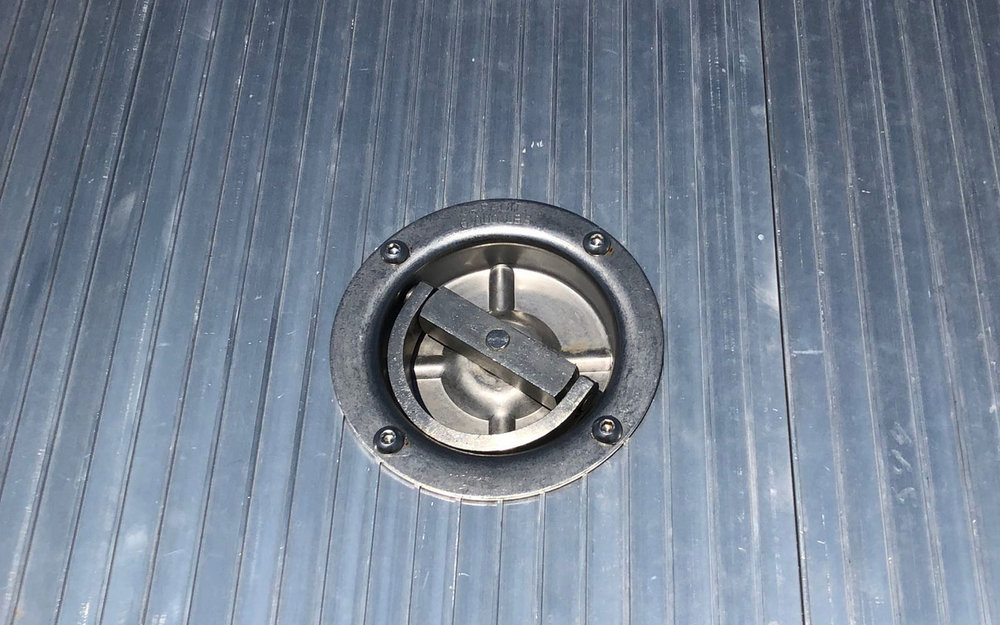

| Tie downs | 4 Floor tie downs |
| Spare | Full-size spare tire |

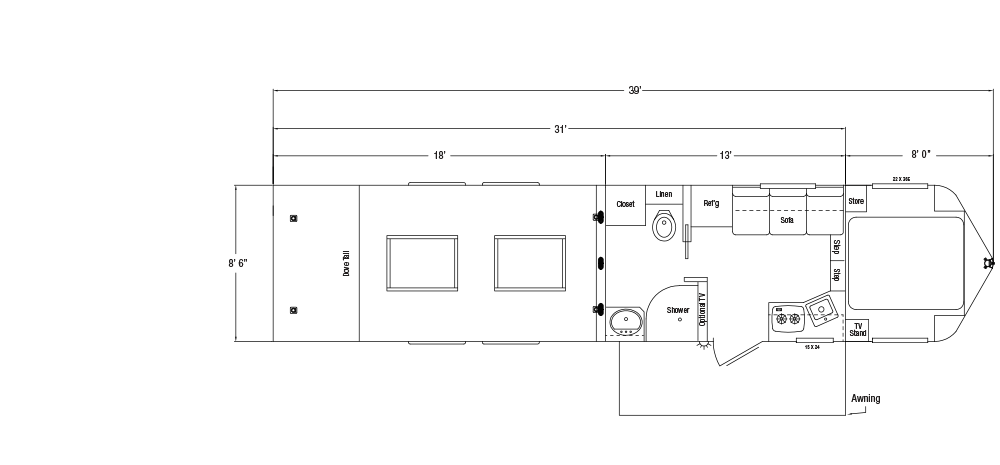

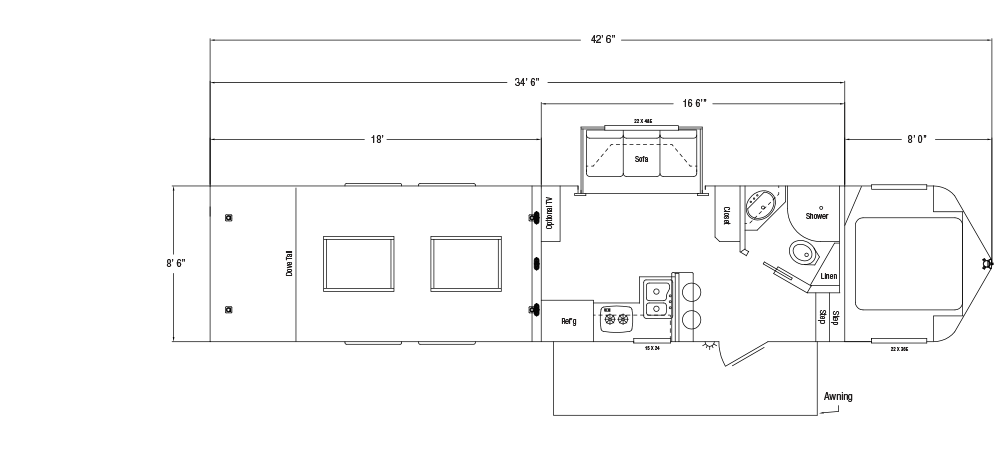

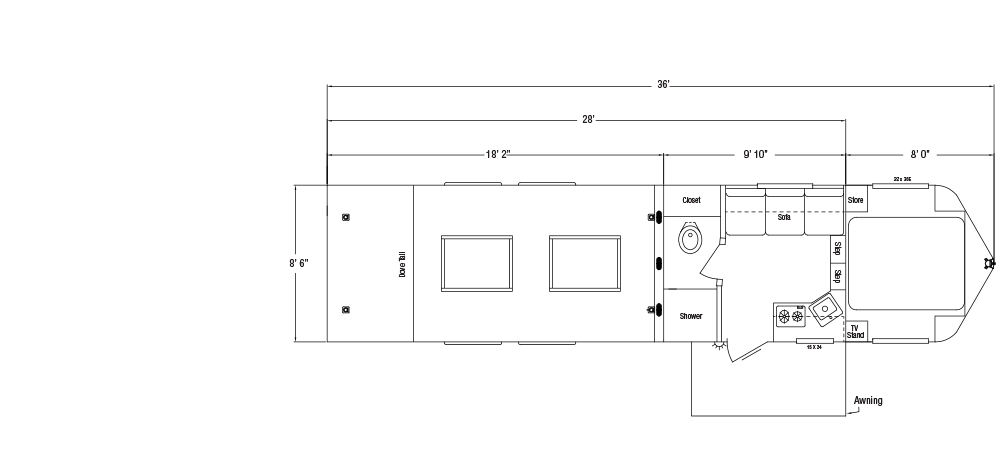

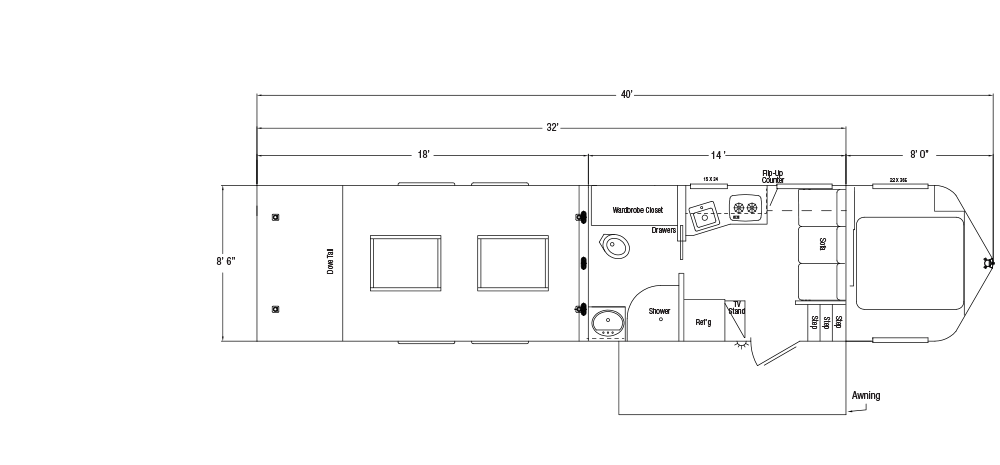

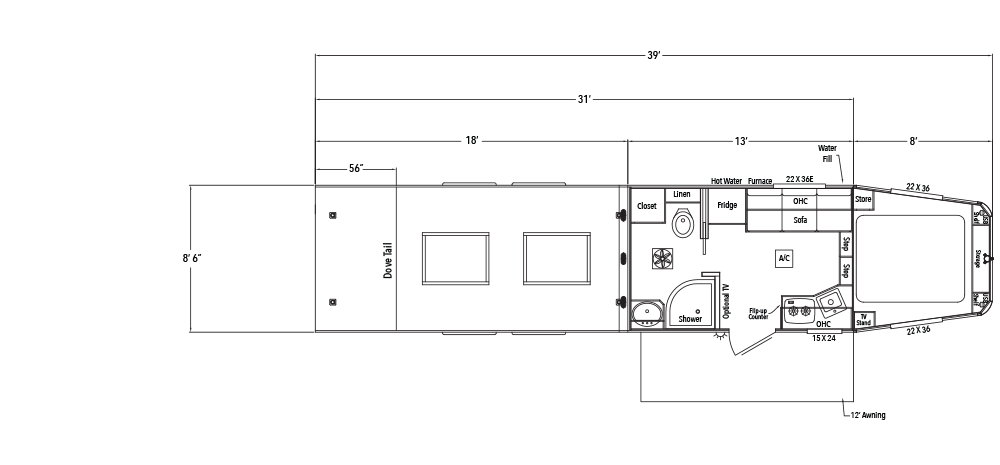

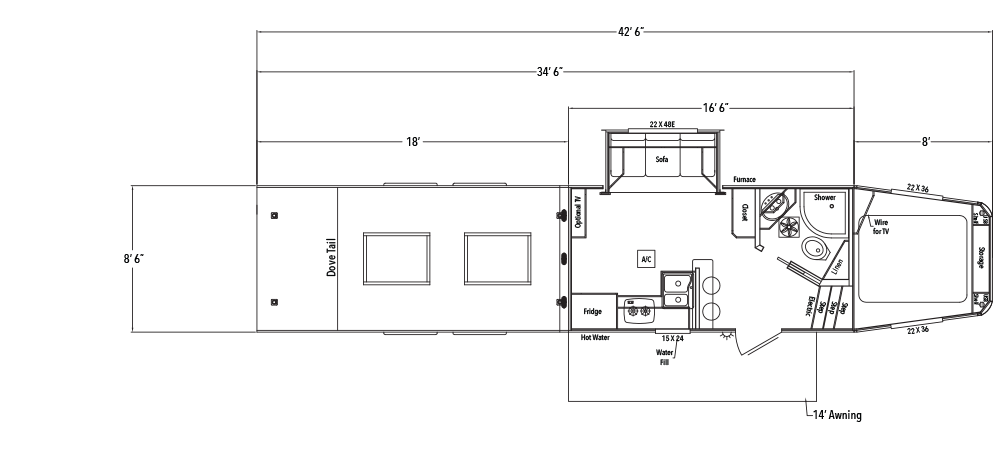

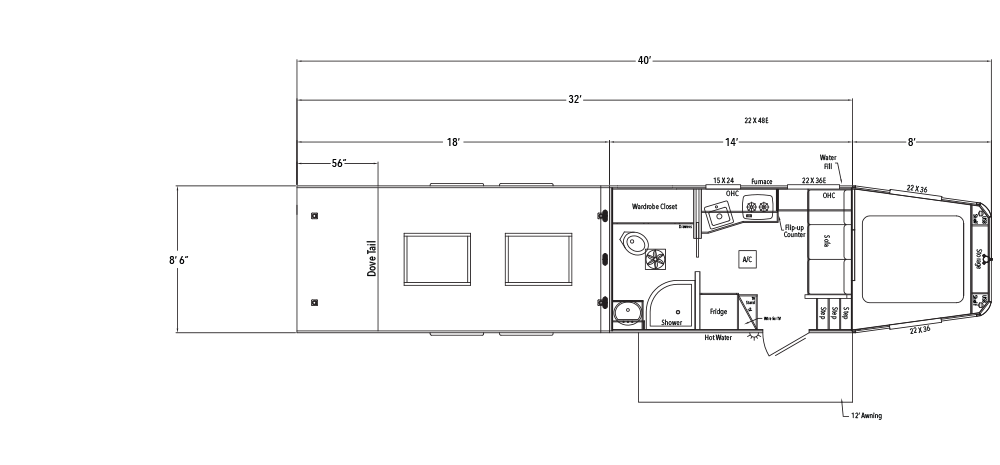

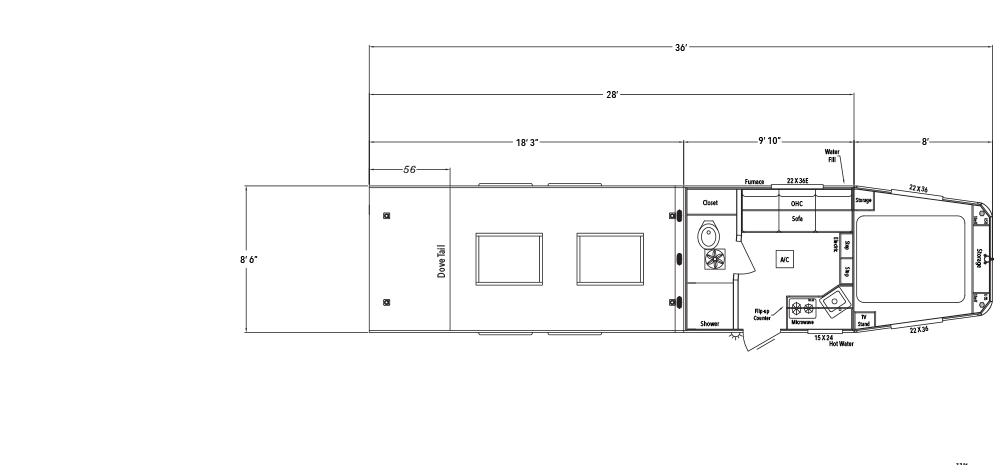

(Click for Larger View)
*All dimensions are approximate. Photos may show options. Due to constant product improvements, specifications, component parts, standard and optional equipment are subject to change without notice or obligation. See your dealer for warranty details.
