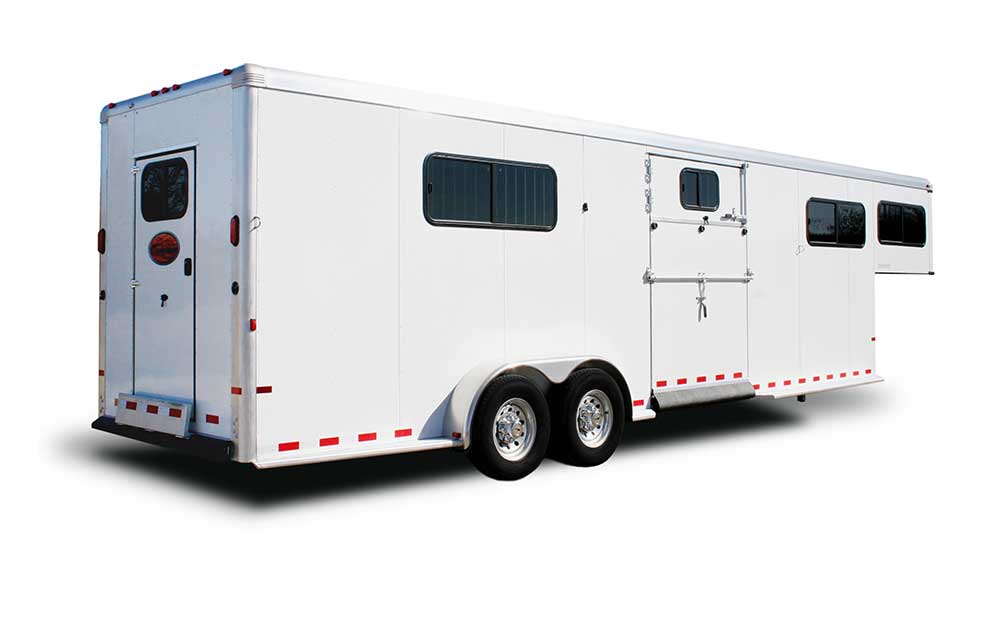

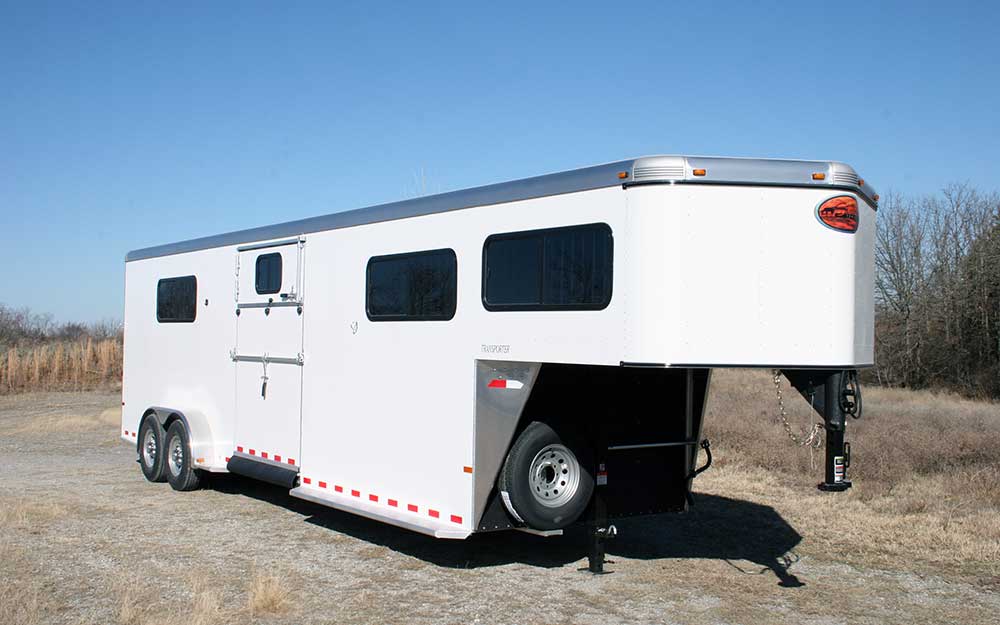

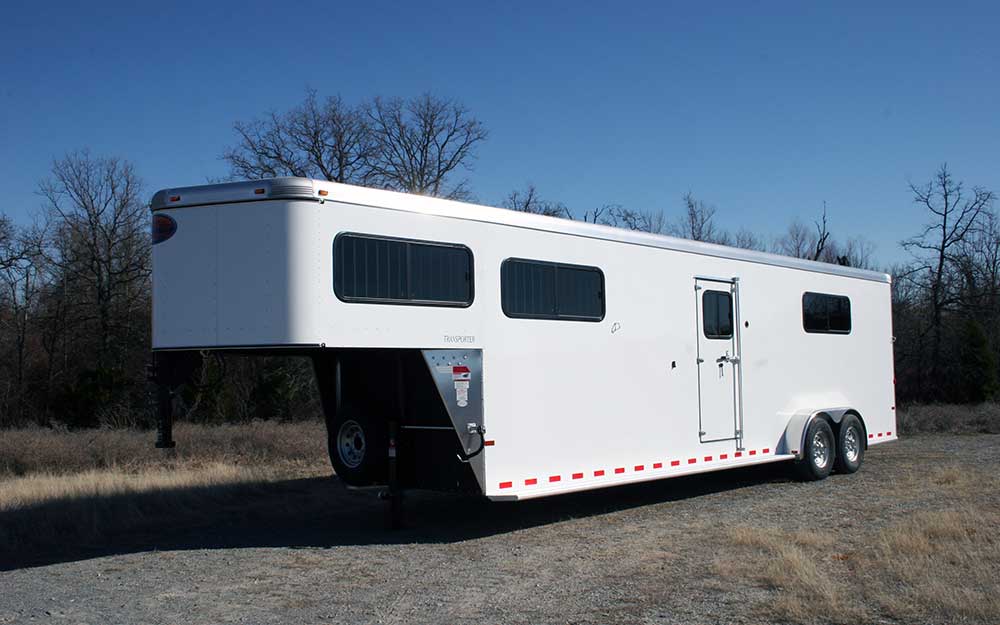

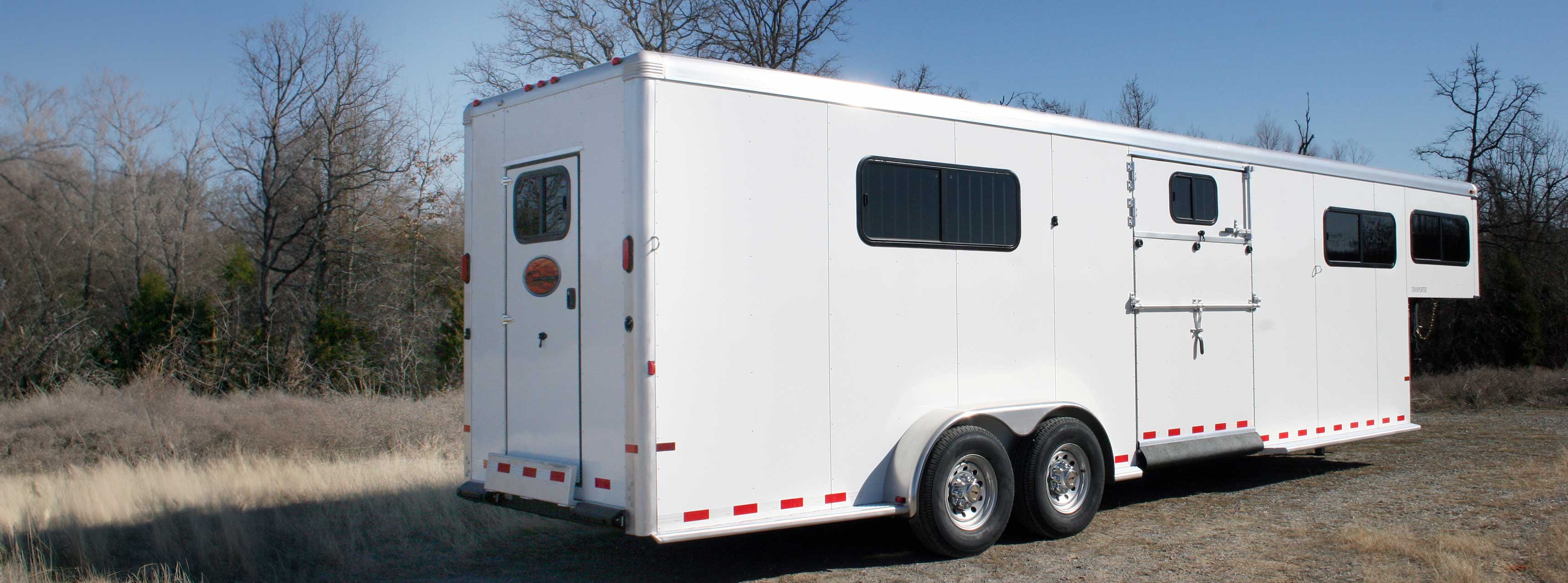

The Transporter is a 4 horse head to head trailer with a large tack storage room and tons of extra features. This trailer is designed to haul four horses with the convenience of being able to pull any one of those horses out when needed without disrupting the rest of your load. This trailer has large windows for each horse and a side ramp for easy loading. It comes standard with a tack room at the rear of the trailer.
Download the Product Sheet
| Coupler | Adjustable Gooseneck, 2 5/16" |
| Load Type | Straight |
| Number of Horses | 4 horse |
| Trailer Width | 6' 9" |
| Inside Height | 7' 6" |
| Stall Width | 38" |
| Construction | All aluminum |
| Floor | All aluminum with aluminum I-beam crossmembers |
| Wall | Tube frame wall with integrated roof rail |
| Exterior | Double wall extruded aluminum sides |
| Exterior skin | Prepainted aluminum skin |
| Axles/Brakes | Rubber torsion axles 4 Wheel electric brakes with safety breakaway |
| Safety Lights | LED clearance & tail lights |
| Landing Gear | Drop leg jack |
| Spare | Spare tire and wheel |
| Running Boards | Full length running boards |

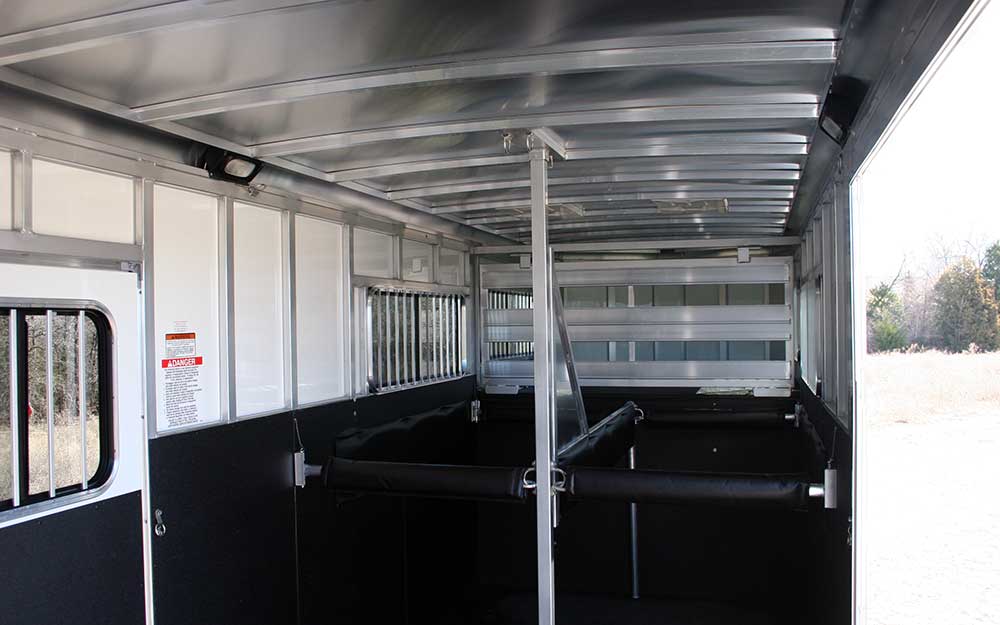

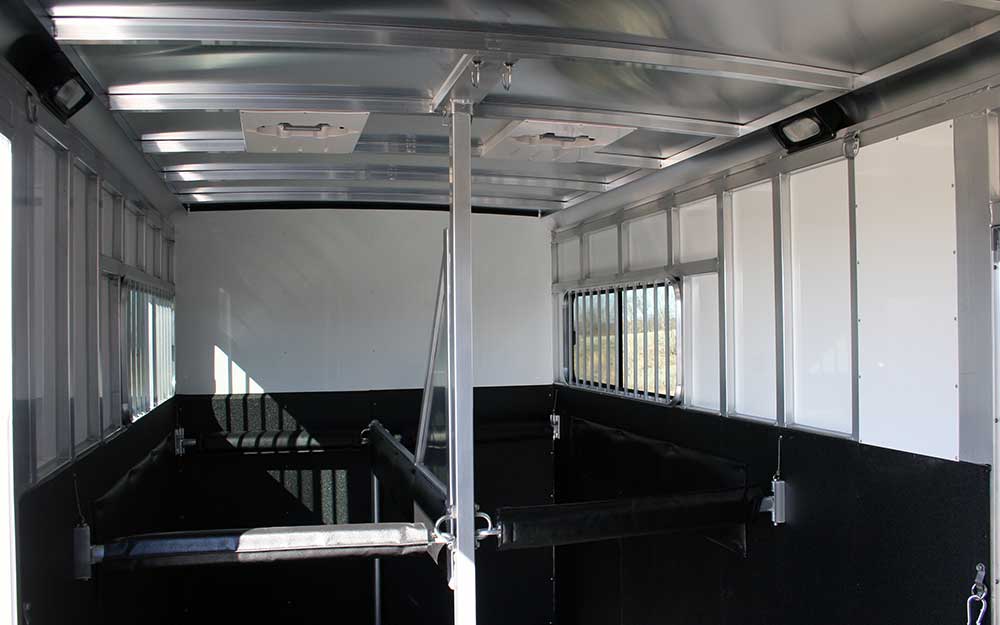

| Dividers | Padded airflow head and shoulder dividers with butt bar and breast bar per stall |
| Floor Mats | In horse area |
| Windows | Large sliding window per stall |
| Walls | SunCoated™ side walls (double wall construction) |
| Vent | Pop-up horse vent per horse stall |
| Interior Light | Dome light in horse area per stall |
| Tie Ring | 1 Outside and 2 inside tie rings per stall |

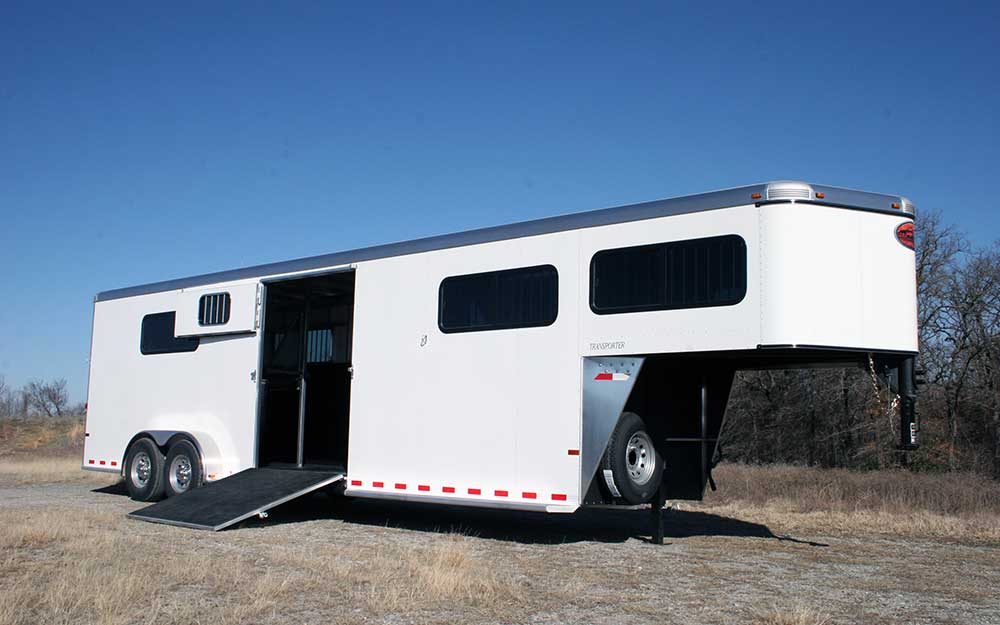

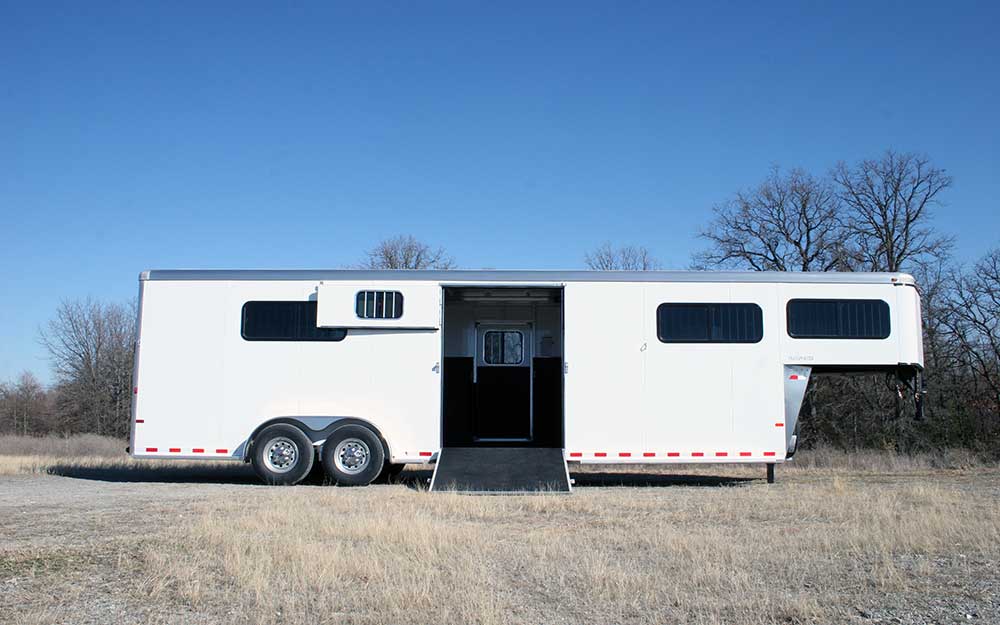

| Side Ramp | 60" Side ramp with curtain |
| Nose Windows | 20" x 36" Windows in the nose |
| Storage | Storage gate to gooseneck |

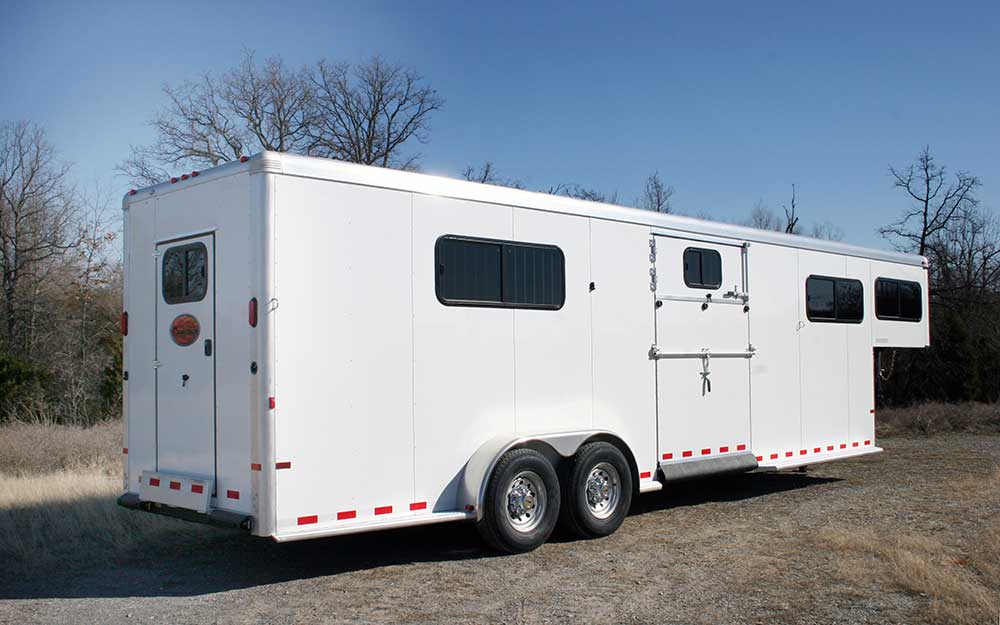

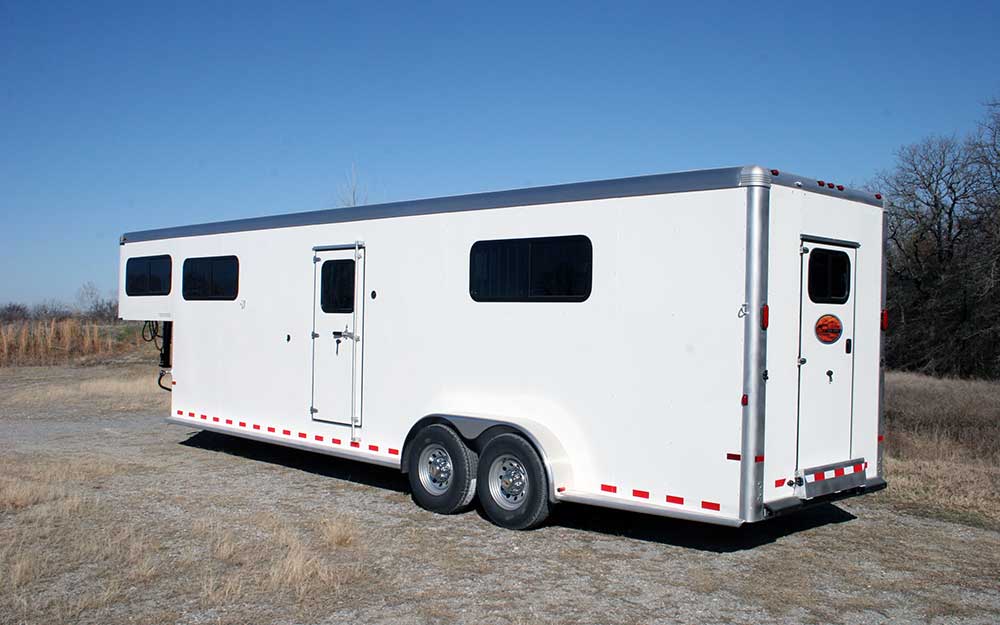

(Click for Larger View)
*All dimensions are approximate. Photos may show options. Due to constant product improvements, specifications, component parts, standard and optional equipment are subject to change without notice or obligation. See your dealer for warranty details.
