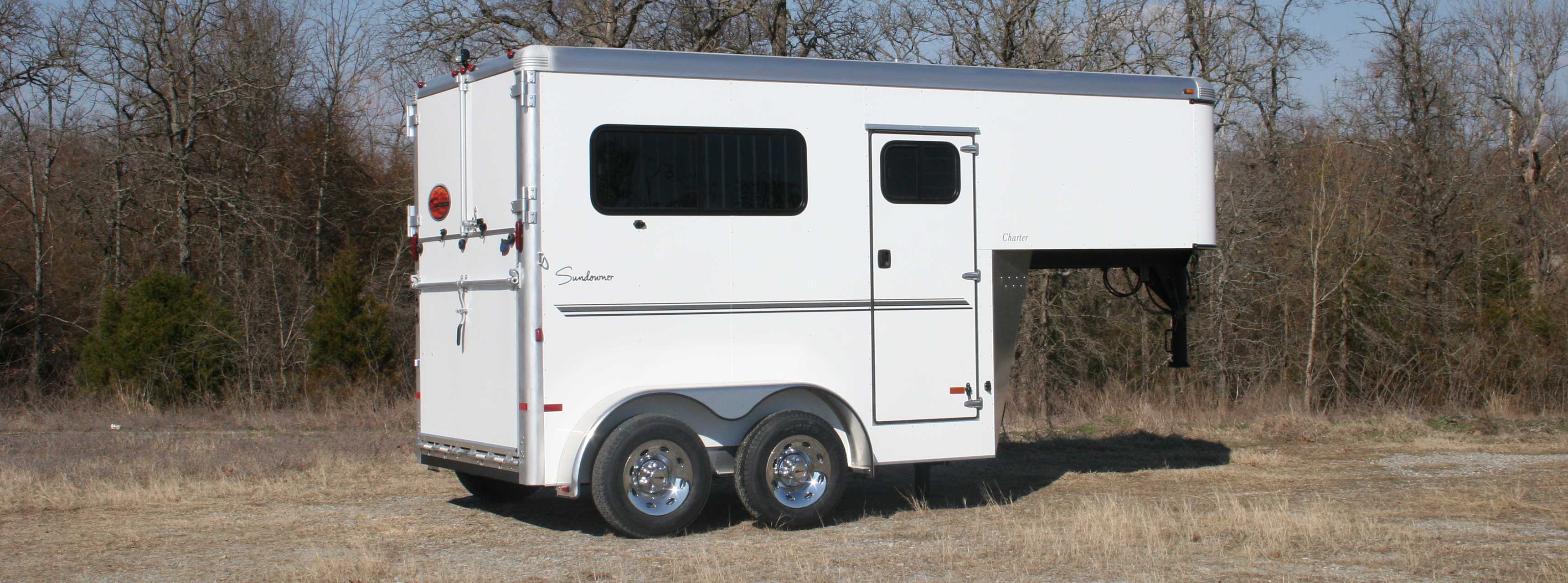

Charter Gooseneck

The Charter Gooseneck is a 2 horse straight load trailer. It comes standard with two large sliding windows in the horse area, a divider between the stalls, a side access door per stall and is 7' 6" tall.



  • Trailer

Standard Features

Coupler Adjustable Gooseneck, 2 5/16"
Load Type Straight
Number of Horses 2 horse
Trailer Width 6' 9"
Inside Height 7' 6"
Stall Width 38"
Construction All aluminum
Floor All aluminum
Exterior Pre-painted aluminum exterior (white)
Axles/Brakes Rubber torsion axles
4 Wheel electric brakes with safety breakaway
Safety Lights LED clearance & tail lights
Landing Gear Drop leg jack
Graphics Graphics package



Horse Area

Dividers Padded airflow head and shoulder divider
with butt bar and breast bar per stall
Floor Mats In horse area
Windows Large sliding window per stall
Side Doors Side access door with sliding window per stall
Ramp Spring loaded rear ramp (rubber lined)
with wrap around tail curtains above rear ramp
Walls SunCoated side walls (double wall construction)
Vent Pop-up horse vent per stall
Interior Light Dome light in horse area
Tie Ring 1 Outside and 2 inside tie rings per stall



Popular Options

Spare
Load lights
Additional interior dome light(s)
SimpleViewer requires JavaScript and the Flash Player. Get Flash

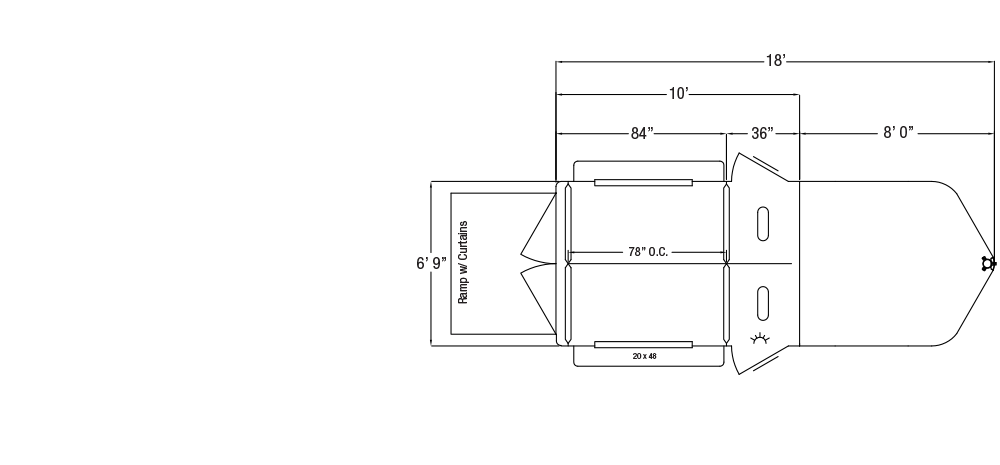

Floorplans

(Click for Larger View)

Sundowner Sportman Bumper Pull Trailer Floorplan

*All dimensions are approximate. Photos may show options. Due to constant product improvements, specifications, component parts, standard and optional equipment are subject to change without notice or obligation. See your dealer for warranty details.
